PTFE Tube, Polytetrafluoroethylene Tube

PTFE Tube, PTFE Hose
Virgin PTFE+Grphite+Brass
White, Black, Brown
Standard Size & Mould
Availability:
Quantity:
  • 3A Rubber

  • 3A3003

  • White, Black, Brown

Description: the PTFE tube, Polytetrafluoroethylene tube are made by moulded or extruded with high quality polytetrafluoroethylene(PTFE) material. It is the best polymer material of chemical resistance in all knows plastic material. With excellent characteristics of corrosion resistance, weathering resistance, dielectric properties and lowest coefficient of fraction in all know solid materials in a wide range of practicable temperature from -180°C - +260°C and a wax-like surface to which anything hardly sticks. Ø2-9mm is made by paste extruded, Ø10-50mm is made by ram extruded, Ø50-300mm is made by moulded. It has the best electrical properties of all plastics. The electrical insulation used under various kinds of frequency, the seal liner of various kinds of corrosively medium, anti-sticking materials, lubrication material.


Specifications:

material: virgin PTFE

filling: graphite, carbon, bronze or fiberglass

quality: premium grade

color: white, black, brown

surface: smooth

tensile strength: 20-30Mpa

hardness: 55+/-5shore D

elongation at break: 200%

density: 2.1-2.7g/cm3

break down voltage: 10KV/mm

temp resist: -180°C - +260°C

size for soft PTFE tube: Ø2-25mm x Ø4-30mm x 10-50m length

size for extrude PTFE tube: Ø20-400mm x Ø24-440mm x 4000mm length

size for moulded PTFE tube: Ø20-200mm x Ø40-400mm x 10-300mm length

black available to fill 3% graphite or 10% carbon

OEM & customized size are agreed

packing in bags, pallets or crates

When you enquiry, pls confirm the material, color, size and quantity

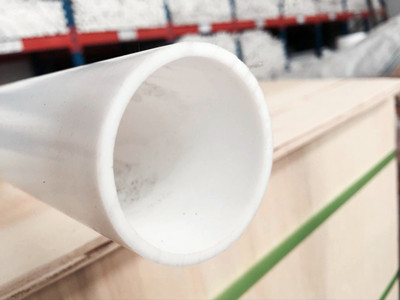

ptfe tube-035_副本     ptfe sheet-087_副本

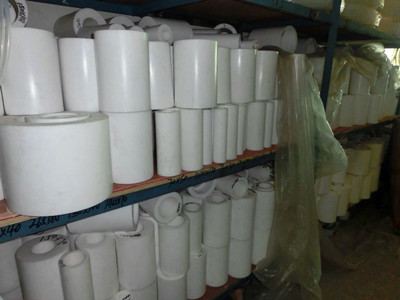

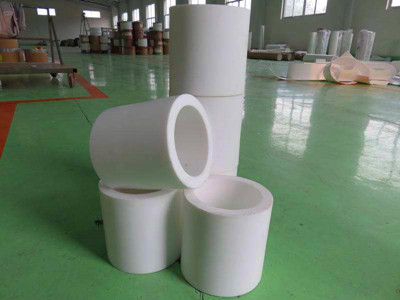

timg (2)_副本     timg (4)_副本

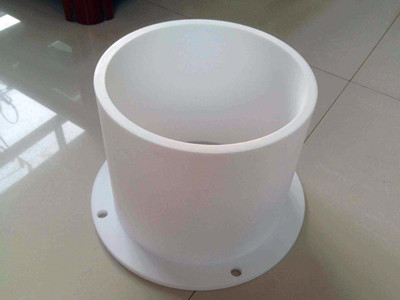

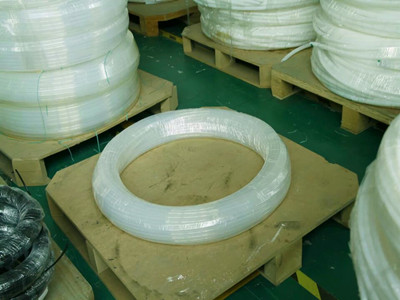

timg (1)_副本     PTFE Tube-032_副本

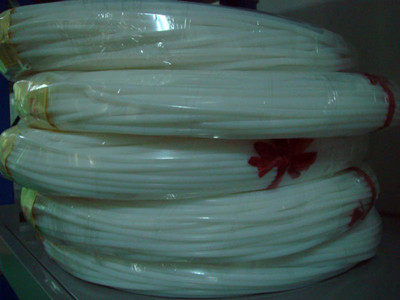

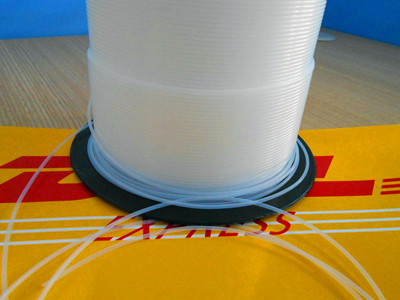

ptfe tube-026_副本     ptfe tube-021_副本_副本
