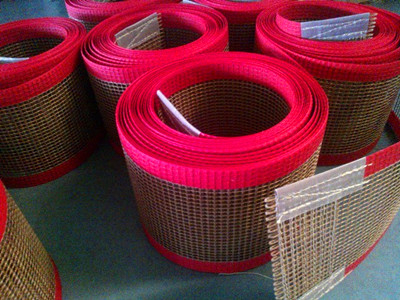

PTFE Mesh Belt, Conveyor Mesh Belt

PTFE Mesh Belt, Conveyor Mesh Belt
Glassfiber, Aramid Coat PTFE
Brown, Beige, Black, Blue
Mesh 1mm x 1mm - 10mm x 10mm
Availability:
Quantity:
  • 3A Rubber

  • 3A3010

  • Brown, Beige, Black, Blue

Description: the PTFE mesh belt, conveyor mesh belt are selected fine fiberglass Or aramid as basic weaving material, coated with excellent PTFE resin to make it into various PTFE open mesh conveyor belts. with good temperature resistance, excellent chemical corrosion resistant & electrical properties, low friction characteristics. It can be used under the temperature of -140°C to 260°C, which has the capability of weather resistant and age resistant. Under practical situation of 250°C for 200 days, not only the intensity will not decrease, the weight will not reduce; 350°C for 120 hours, the weight only decreased less than 0.6%; -140°C, it will not chap and keep the original pliability. Resist acid, alkali, aqua fortis and various kinds of organic liquid corrosion almost to resisting all kinds of medicament. Hardly to adhere any material, it is easy to wash away the blot or other dust such as resin, coating material etc.



Specifications:

material: glassfiber, aramid coated PTFE

quality: premium grade

color: brown, beige, black, blue etc.

surface: smooth/smooth

temperature resist: -140°C - +260°C


Features Of PTFE conveyor belts:

1. High temperature resistance-It can continuously work under -140 to 320,max resist high temperature up to 360.

2. Permeability-It can avoid wasting heat and improve drying efficiency for it's permeability.

3. Chemical resistance-It can resist all most of chemical medicines.

4. Non-stick-It can easily remove all kinds of adhesives such as resin, paint and chemical medicine.

5. Good flex fatigue resistanceIt has high tensile strength and excellent flex fatigue resistance. It's better for small wheels.


Applications:

1. Drying machine for non-woven textile, textile printing, silk-printing and dyeing machine.

2. Shrinking machine for garment fabric, high-frequency and UV dryer.

3. Conveyer belt for hot-air dryer, various of food baking, quick-frozen machines.

4. Oiling machine for paper glazing and waxing, plant engineering.

5. Separating sheet for hardboard production etc.


Specification: thickness: 0.2-1.35mm

width: 300-4200mm

mesh size: 0.5-10mm, square(44mm, 11mm, etc.)

color: light coffee, coffee, black, blue

OEM & customized size are agreed

packing in rolls, pallets or crates


Specifications of our teflon open mesh conveyor belt:

Item No Mesh Size Material Thickness Weight Max Width Tensile Strength
1 1x1mm fiberglass 0.5mm 370g/sqm 4000mm 310/290N/cm
2 2x2mm fiberglass 0.7mm 450g/sqm 4000mm 350/310N/cm
3 4x4mm fiberglass 1.0mm 400g/sqm 4000mm 390/320N/cm
4 4x4mm fiberglass 1.0mm 450g/sqm 4000mm 390/320N/cm
7 4x4mm Fiberglass+kevlar 1.2mm 600g/sqm 4000mm 895/370N/cm
8 4x4mm fiberglass 1.0mm 500g/sqm 4000mm 395/370N/cm
9 4x4mm kevlar 1.0mm 500g/sqm 4000mm 900/600N/cm
10 4x4mm fiberglass 1.0mm 550g/sqm 4000mm 395/370N/cm
11 10x10mm fiberglass 1.2mm 450g/sqm 4000mm 360/300N/cm
12 0.5x1mm fiberglass 0.5mm 420g/sqm 4000mm 310/290N/cm
13 2x2.5mm fiberglass 0.9mm 600g/sqm 3000mm 390/320N/cm

When you enquiry, pls confirm the material, mesh, size and quantity

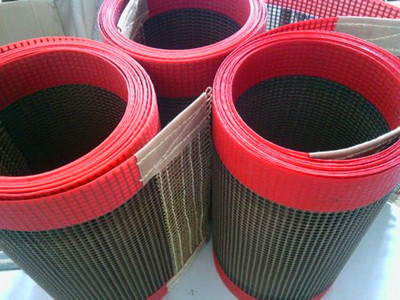

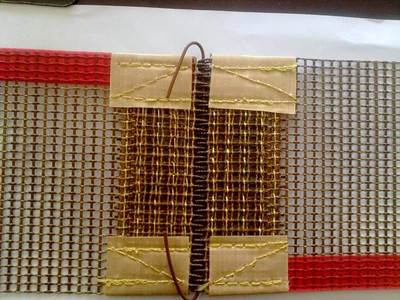

20130916204155479621    ptfe belt bullnose joint_副本

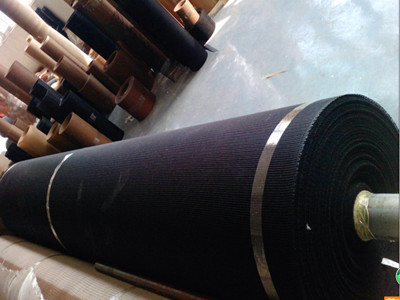

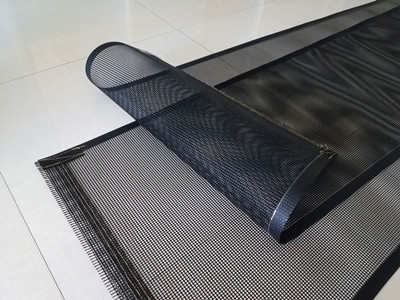

ptfe mesh belt-006_副本    ptfe mesh bullnose joint-009_副本

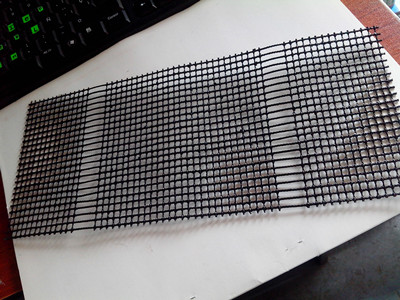

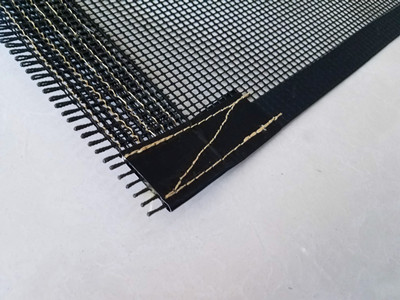

ptfe mesh belt-004_副本    ptfe mesh bullnose joint-017_副本

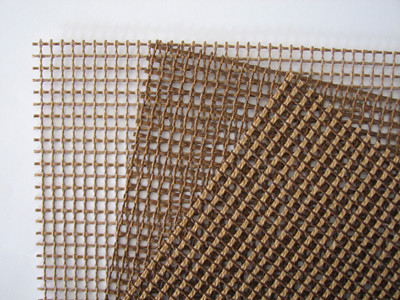

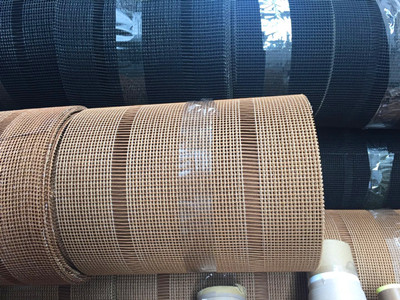

ptfe mesh belt-011_副本    ptfe mesh belt-020_副本
