PTFE Sealing Tape, Thread Sealing Tape

PTFE Expand Material
White, Yellow, Brown, Beige, Black
T0.075-0.2mm x W3-100mm x L5-50m
Density 0.15-0.35g/cm3
Availability:
Quantity:
  • 3A Rubber

  • 3A3007

  • White, Yellow, Brown, Beige, Black etc.

Description: the PTFE sealing tape, thread sealing tape is made by pure expand PTFE with excellent characteristics of insulation, acid-resistance, and corrosion-resistance. It is the best polymer material of chemical resistance in all knows plastic material. With excellent characteristics of corrosion resistance, weathering resistance, dielectric properties and lowest coefficient of fraction in all know solid materials in a wide range of practicable temperature from -180°C - +260°C and a wax-like surface to which anything hardly sticks. It is an ideal material for sealing and widely applied in construction, industry ,chemical industry and other areas, especially in pipe linking systems for a long term.


Specifications:

material: pure PTFE expand

color: white, red, green, blue etc.

tensile strength: ≥8Mpa

elongation: ≥25%

working pressure: 150-250kg/cm2

density: 0.15-0.35g/cm3

heat-resistance: +260°C

cold-resistance: -180°C

width: 3-100mm

length: 5-50m

thickness: 0.075-0.2mm

inner packing: 10pcs wrapped in transparent shrink foil or small box

outer packing: 100-250spools/carton, 4 cartons/master carton, or as per customer's request

OEM & customized sizes are agreed

packing in rolls, bags, cartons

When you enquiry, pls confirm the density, color, size and quantity

Standard Size for PTFE Thread Sealing Tape:

Item No.

Width

Thickness

Length

Density

1

12mm

0.075mm

5m

0.15g/cm3-0.35g/cm3

2

12mm

0.075mm

10m

3

12mm

0.075mm

12m

4

12mm

0.1mm

10m

5

12mm

0.1mm

12m

6

1/2"

0.075mm

260"

7

1/2"

0.075mm

520"

8

13mm

0.1mm

15m

9

19mm

0.075mm

10m

10

19mm

0.075mm

20m

11

19mm

0.1mm

50m

12

19mm

0.2mm

15m

13

3/4"

0.075mm

260"

14

3/4"

0.075mm

520"

15

25mm

0.075mm

10m

16

25mm

0.075mm

20m

17

25mm

0.1mm

50m

According to the buyers requirements production

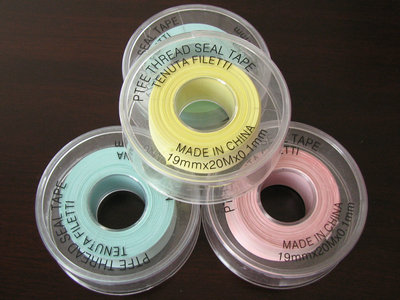

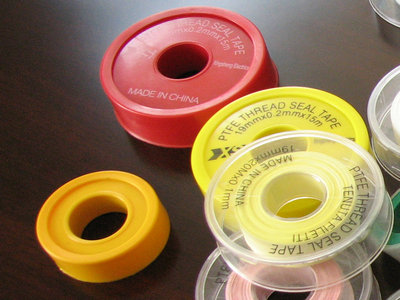

PTFE seal tape-028     PTFE seal tape-012

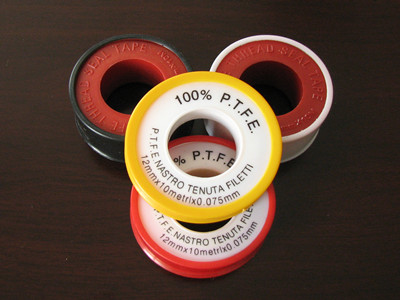

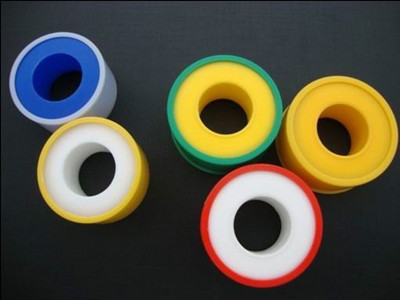

ptfe seal tape-002_副本     ptfe seal tape-018_副本

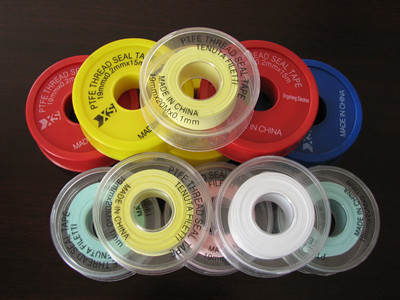

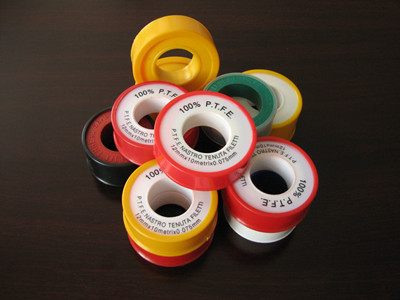

ptfe seal tape-014_副本     ptfe seal tape-022_副本

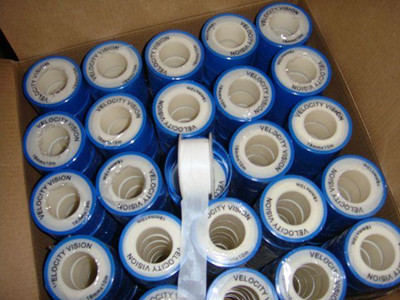

ptfe seal tape-041_副本     ptfe seal tape-003_副本
