3A3008
Brown, Yellow, Green, Red, Blue etc.

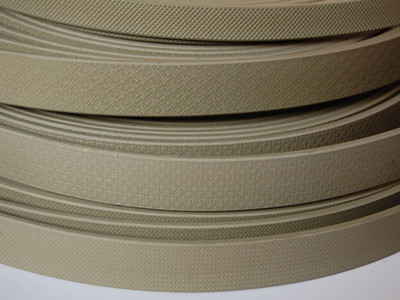

Description: the PTFE guide tape, phenolic guide tape are a nano-polymer composites based on PTFE material or phenolic + fabric, applying in all types of precision machine tools requiring high accuracy, CNC equipments and high-end guide bands products of processing centers. The guide bands contain rich solid lubricant particles which enables the bands have a excellent friction and wearing properties. By force of nano super fine recipe, uniform and dense material and strong wearing resistance, the soft bands are widely used in all types of common machine tools, textiles, printing, paper-manufacturing, food, chemical engineering, woodworker or manufacture and maintenance of other mechanical sliding guide especially precision machine tools etc.
Specifications:
material: 60%PTFE + 40%bronze or phenolic + fabric
pressure：15Mpa@25°C, 12Mpa@80°C, 8Mpa@120°C
temperature: -60°C - +260°C
speed: 15m/s
high wearing resistance: normally 10times of cast iron guide, good accuracy maintenance
low friction: friction coefficient<0.04, only 1/3 of cast iron guide, reducing the driving-energy consumption
no creeping: moving steadily
good shock-absorbing ability: improving processing accuracy
good lubrication suitable for dry use (depending on the load)
good temperature resistance
compatible with most of the fluids in contact
easy assembly, low friction coefficient.
easy-to-do maintenance: as the hardness is much lower than metal, friction is mainly on the bands, we can just replace new bands. meanwhile, it prevents the middle-deboss of the machine tool body
thickness: 0.8, 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 6.0mm
width: 3.2, 4.2, 5.0, 5.6, 6.0, 6.3, 8.0, 8.1, 9.7, 10, 12, 12.7, 13, 15, 16, 18, 20, 25, 30, 35, 40, 45, 50, 55, 60, 120, 150, 200, 300mm
length: 10-20m

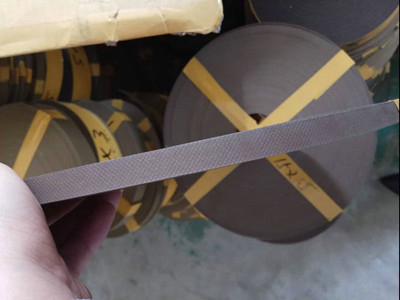

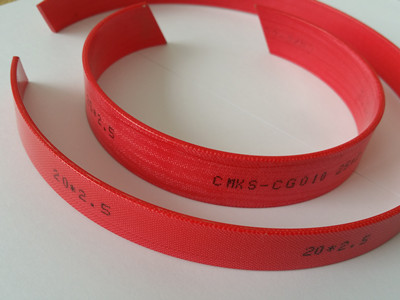

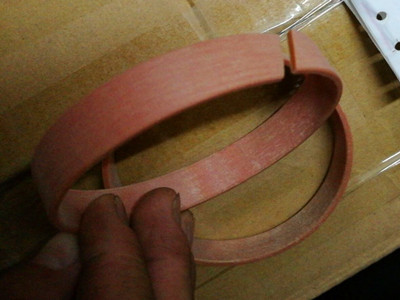

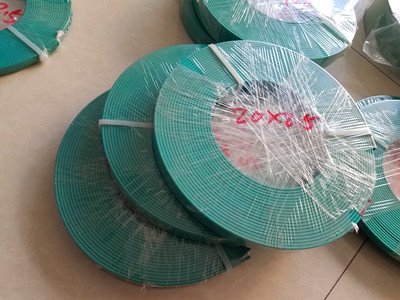

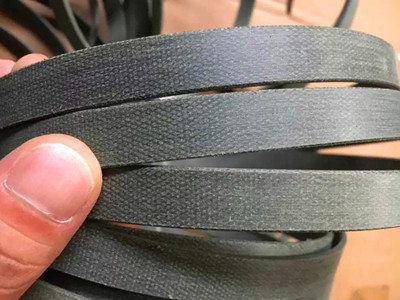

special supply phenolic guide tape and wear ring reinforced fabric with red, green color
OEM & customized size are agreed

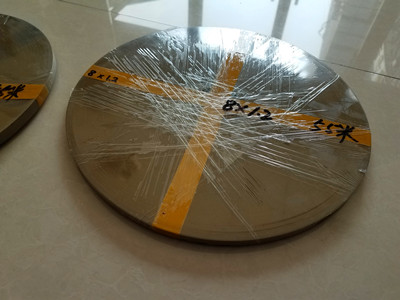

packing in rolls, cartons, pallets or crates
For more data & information, pls mail to sales@3Arubber.com
When you enquiry, pls confirm the material, color, size and quantity
| Material | PTFE + bronze | ||
| Colour | Brown | Green | |
| Density (g/cm3) | 2.9-3.3 | 2.7-3.2 | |
| Coefficient of linear expansion (40-120°C) | 7.62 | 7.5 | |
| Tensile strength (Mpa) | 16 | 14 | |
| Elongation (%) | 170 | 150 | |
| Compressive strength (Mpa) | 30-40 | 28-38 | |
| Bending strength (Mpa) | 25-30 | 23-29 | |
| Non-notched impact strength(KJ/m2) | >15 | >14 | |
| Friction loss performance (dry friction) | friction coefficient (μ) | 0.15-0.21 | 0.16-0.23 |
| trace width of friction(m) | <6 | <7.5 | |
| friction loss(mm3) | 6.0-10.5 | 6.5-11.2 | |
