Silicone Hose, Silicone Tube, Silicone Sleeve

Virgin Silicone
Food Grade
Platinum Cured
Silicone Hose, Silicone Tube, Silicone Sleeve
Availability:
Quantity:
  • 3A Rubber

  • 3A1003

  • Transparent, Translucent, Dark Red, Orange, Black, Milk White, Blue, Grey etc.

Description: the silicone hose, silicone tube, silicone sleeve are extruded or moulded by special silicone extruding machine or moulded machine with high quality silicone material under full sets mould of different inside diameter(ID) and outside diameter(OD) according to the request from buyers, high tensile strength, flexibility strong anti-pull and wider revise hardness range with good aging resistant, ozone resistant, heat resistant, insulation property, platinum cured without smell, working in the air, water at the temperature of -40°C - +220°C(moment maximum 260°C). industrial grade silicone hose is made with standard extrude silicone and vulcanized with import peroxide without smell; food grade silicone hose is made with food grade transparent fumed silicone, platinum vulcanized, nonpoisonous and tasteless; medical grade silicone hose is made with medical grade transparent fumed silicone, platinum vulcanized with FDA and LFGB certificate. Apply to corona roller or transfer water, air and other medium etc.


Specifications:

material: virgin silicone material

quality: industrial grade, food grade, platinum cured

color: transparent, translucent, dark red, orange, black, milk white, blue, grey etc.

surface: smooth/smooth

fiber reinforced: insert 1-5PLY polyester fiber, fabric or stainless steel 304 wire

tensile strength: 7.5-9.8Mpa

hardness: 50, 60, 70, 80+/-5shore A

elongation: 350-720%

density: 1.25+/-0.05g/cm3

tear strength: 26-42N/mm

working temperature: -40°C - +220°C(moment maximum 260°C)

wall thickness: 1.0, 2.0, 3.0, 4.0, 5.0mm

standard size:

Ø0.5mm x Ø1.0mm x 5-20kgs

Ø0.5mm x Ø1.5mm x 5-20kgs

Ø0.5mm x Ø2.0mm x 5-20kgs

Ø0.8mm x Ø1.9mm x 5-20kgs

Ø1.0mm x Ø2.0mm x 5-20kgs

Ø1.0mm x Ø3.0mm x 5-20kgs

Ø1.0mm x Ø4.0mm x 5-20kgs

Ø1.5mm x Ø2.5mm x 5-20kgs

Ø1.5mm x Ø3.0mm x 5-20kgs

Ø1.6mm x Ø3.2mm x 5-20kgs

Ø2.0mm x Ø3.0mm x 5-20kgs

Ø2.0mm x Ø4.0mm x 5-20kgs

Ø2.0mm x Ø5.0mm x 5-20kgs

Ø2.0mm x Ø6.0mm x 5-20kgs

Ø3.0mm x Ø4.0mm x 5-20kgs

Ø3.0mm x Ø5.0mm x 5-20kgs

Ø3.0mm x Ø6.0mm x 5-20kgs

Ø3.0mm x Ø8.0mm x 5-20kgs

Ø3.0mm x Ø9.0mm x 5-20kgs

Ø4.0mm x Ø5.0mm x 5-20kgs

Ø4.0mm x Ø6.0mm x 5-20kgs

Ø4.0mm x Ø7.0mm x 5-20kgs

Ø4.0mm x Ø8.0mm x 5-20kgs

Ø5.0mm x Ø8.0mm x 5-20kgs

Ø5.0mm x Ø9.0mm x 5-20kgs

Ø5.0mm x Ø10.0mm x 5-20kgs

Ø6.0mm x Ø9.0mm x 5-20kgs

Ø6.0mm x Ø10.0mm x 5-20kgs

Ø6.0mm x Ø12.0mm x 5-20kgs

Ø7.0mm x Ø9.0mm x 5-20kgs

Ø7.0mm x Ø10.0mm x 5-20kgs

Ø7.0mm x Ø12.0mm x 5-20kgs

Ø8.0mm x Ø10.0mm x 5-20kgs

Ø8.0mm x Ø12.0mm x 5-20kgs

Ø8.0mm x Ø14.0mm x 5-20kgs

Ø9.0mm x Ø12.0mm x 5-20kgs

Ø9.0mm x Ø14.0mm x 5-20kgs

Ø9.0mm x Ø16.0mm x 5-20kgs

Ø10.0mm x Ø14.0mm x 5-20kgs

Ø10.0mm x Ø16.0mm x 5-20kgs

Ø10.0mm x Ø18.0mm x 5-20kgs

Ø12.0mm x Ø16.0mm x 5-20kgs

Ø12.0mm x Ø18.0mm x 5-20kgs

Ø12.0mm x Ø20.0mm x 5-20kgs

Ø14.0mm x Ø18.0mm x 5-20kgs

Ø14.0mm x Ø20.0mm x 5-20kgs

Ø14.0mm x Ø22.0mm x 5-20kgs

Ø16.0mm x Ø18.0mm x 5-20kgs

Ø16.0mm x Ø20.0mm x 5-20kgs

Ø20.0mm x Ø30.0mm x 5-20kgs

Ø30.0mm x Ø40.0mm x 5-20kgs

Ø40.0mm x Ø50.0mm x 5-20kgs

OEM & customized size are agreed

packing in rolls, bags, cartons, pallets or crates

When you enquiry, pls confirm the hardness, color, size and quantity

Food grade silicone fiber hose, silicone braided hose, silicone reinforeced hose
Item silicone fiber hose, silicone braided hose, silicone reinforeced hose
Material food grade silicone material
Reinforeced braided polyester fiber
Color transparent, red, blue, black or as the buyer's request color
Surface smooth
Tensile strength 7.5-9.8Mpa
Hardness 50-70shore A
Elongation 350%
Density 1.25g/cm3
Working press 10Kgs
Minimum working temperature -40°C
Maximum working tempeerature +220°C(moment maximum 260°C)
ID(Inside diameter) 4~50mm
Wall thickness 3~5mm
Tolerance ID less than 1/2'', ±0.3mm; ID more than 1/2'', ±0.5mm
Size id4mm x od9mm
id5mm x od11mm
id6mm x od10mm, id6mm x od12mm
id7.5mm x od14.5mm
id8mm x od12mm, id8mm x od14mm, id8mm x od16mm
id9mm x od15mm
id10mm x od15mm, id10mm x od17mm, id10mm x od18mm,   id10mm x od19.5mm
id12mm x od20mm
id12.7mm x od20mm
id13mm x od19mm, id13mm x od20mm, id13mm x od21mm
id16mm x od24mm
id19mm x od27mm, id19mm x od28mm
id19.5mm x od27.5mm
id22mm x od32mm
id25mm x od35mm
id32mm x od42mm
id38mm x od46mm
id38mm x od48mm
id50mm x od60mm
Properties: znti-aging, erosion-endurable, high temperature resistance, anti-shock, etc.
Advantages: customized + high performance + high quality + favorable price + rich experience

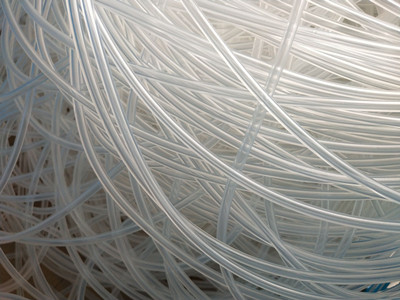

Silicone Rubber Hose-037    silicone rubber hose-铂金硫化-001_副本

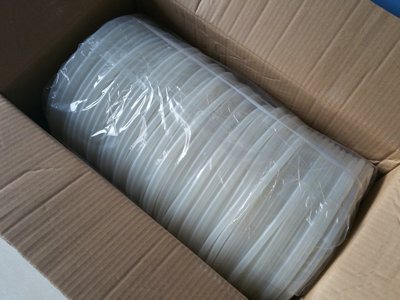

silicone braided hose-031_副本    Silicone Rubber Hose-129


silicone rubber hose-120_副本    Silicone Braided Hose-004

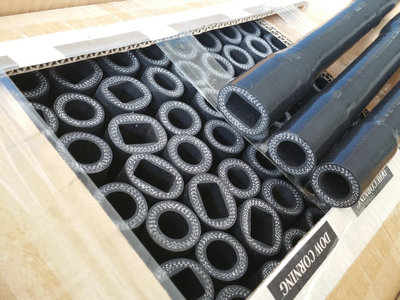

Silicone Hump Hose-004    Silicone Rubber Hose-119



Specifications:

Silicone tube, silicone sleeve for corona roller

Description: the corona silicone tube, silicone sleeve are made with high quality import fume silicone material which can resistant high voltage and inflaming retarding and special for corona machine. The high voltage corona sparkle is well-proportioned, it is easy to print color on plastic film with surface activation and millipore after corona treatment. Resistant 25KV at 1mm wall thickness. Apply for the roller sleeve, high-voltage terminal, protective sleeve, flexing tubing for all kinds of corona machine.


Specifications:

material: virgin fume silicone material

color: orange, dark red, translucent, black etc.

tensile strength: 9.8Mpa

hardness: 60-70shore A

elongation: 720%

density: 1.25g/cm3

working temperature: -40°C - +220°C(moment maximum 260°C)

resistant: 18-25KV/mm

wall thickness: 2.0, 3.0, 4.0, 6.0mm

standard size:

Ø32mm x Ø38mm x 2-20m

Ø32mm x Ø40mm x 2-20m

Ø34mm x Ø42mm x 2-20m

Ø46mm x Ø54mm x 2-20m

Ø50mm x Ø58mm x 2-20m

Ø55mm x Ø62mm x 2-20m

Ø60mm x Ø66mm x 2-20m

Ø60mm x Ø68mm x 2-20m

Ø63mm x Ø71mm x 2-20m

Ø67mm x Ø75mm x 2-20m

Ø75mm x Ø83mm x 2-20m

Ø80mm x Ø88mm x 2-20m

Ø90mm x Ø98mm x 2-20m

Ø98mm x Ø102mm x 2-20m

Ø106mm x Ø114mm x 2-20m

Ø140mm x Ø150mm x 2-20m

Ø145mm x Ø153mm x 2-20m

Ø162mm x Ø172mm x 2-20m

......

OEM & customized size are agreed

packing in bags, cartons, pallets and crates

When you enquiry, pls confirm the hardness, color, size and quantity

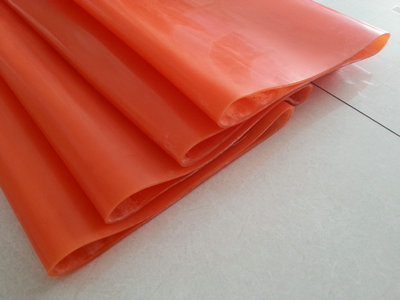

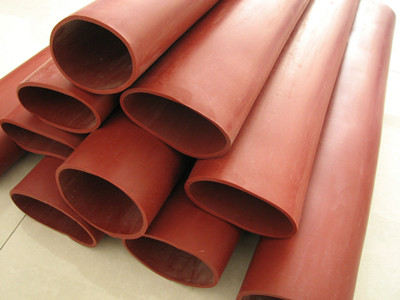

Silicone Sleeve-051     silicone sleeve-025_副本_副本


Silicone Rubber Hose-163     Silicone Rubber Hose-245

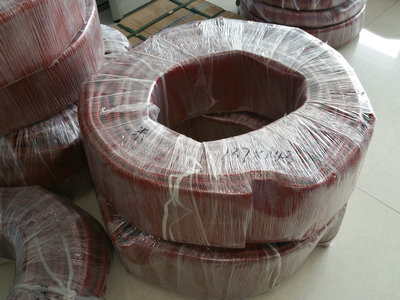

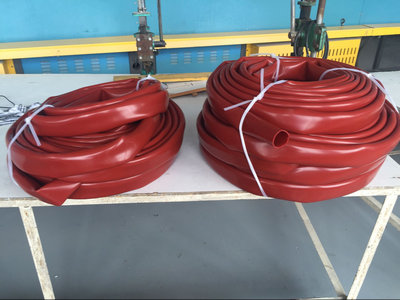

Silicone Sleeve-070    Silicone Rubber Hose-158
