| Quantity: | |
|---|---|
3A1004
Translucent, Dark Red, Black, Milk White, Blue, Grey etc.

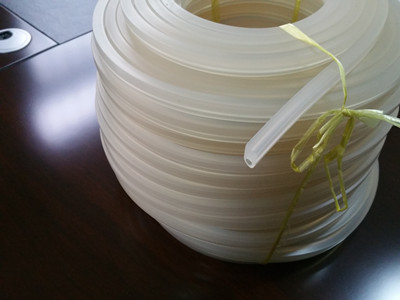

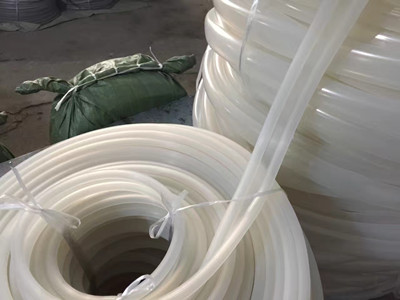

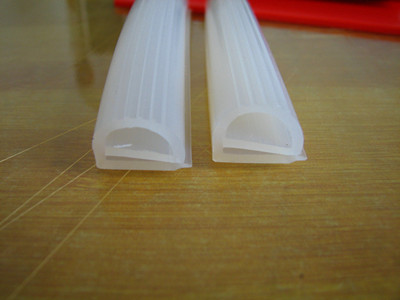

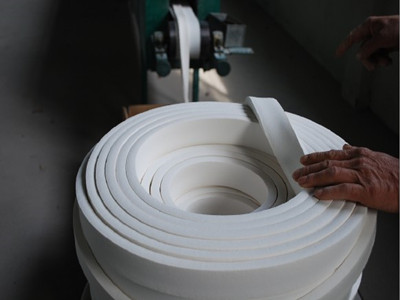

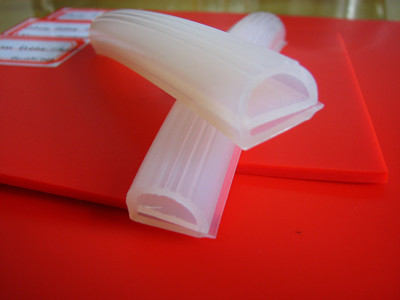

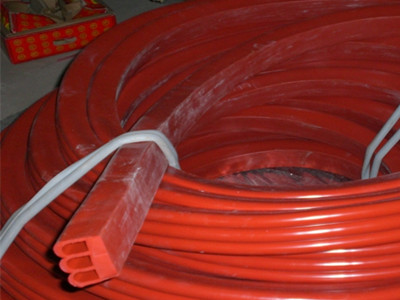

Description: the silicone cord, silicone stripe, silicone profile, silicone extrusion are extruded by special silicone extruding machine with high quality silicone material according to full sets mould and the design, drawing or sample from the buyers, high tensile strength, flexibility strong anti-pull and wider revise hardness range with good aging resistant, ozone resistant, heat resistant, insulation property, fuel oil resistance and lube resistance, working in the air, water, oil medium at the temperature of -60°C - +250°C for all kinds of seal application.
Specifications:
material: 100% virgin silicone material
quality: industrial grade, food grade
color: translucent, dark red, black, milk white, blue, grey etc.
surface: as per the buyer's drawing
tensile strength: 7.5-9.8Mpa
hardness: 50, 60, 70, 80+/-5shore A
elongation: 350-720%
density: 1.25g/cm3
tear strength: 26-42N/mm
working temperature: -60°C - +250°C
size: build mould according to the buyer's drawing or sample
OEM & customized size are agreed
packing in rolls, cartons, pallets or crates

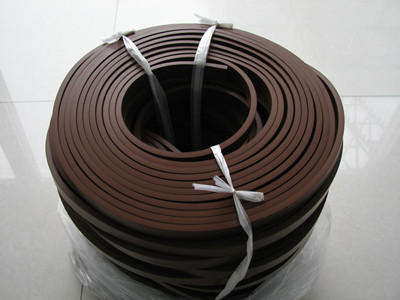

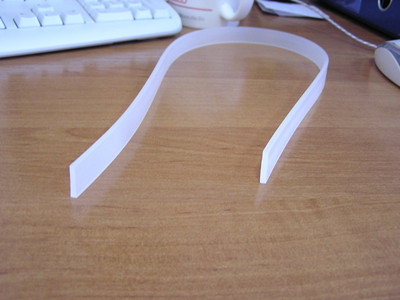

size for rectangular silicone stripe:
2mm x 10mm, 2mm x 15mm, 2mm x 20mm
3mm x 3mm, 3mm x 10mm, 3mm x 15mm, 3mm x 20mm, 3mm x 30mm, 3mm x 40mm, 3mm x 50mm
4mm x 4mm, 4mm x 6mm, 4mm x 10mm, 4mm x 15mm, 4mm x 20mm, 4mm x 30mm, 4mm x 40mm, 4mm x 50mm
5mm x 5mm, 5mm x 10mm, 5mm x 12mm, 5mm x 15mm, 5mm x 20mm, 5mm x 30mm, 5mm x 40mm, 5mm x 50mm
6mm x 6mm, 6mm x 8mm
8mm x 8mm, 8mm x 10mm
10mm x 10mm, 10mm x 15mm, 10mm x 20mm
20mm x 20mm, 20mm x 30mm
25mm x 25mm, 25mm x 30mm
30mm x 30mm

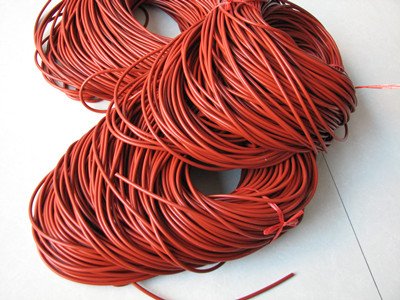

size for round silicone cord:
od2mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 15mm, 16mm, 17mm, 18mm, 20mm, 25mm x roll
od20mm, 30mm, 35mm, 40mm, 45mm, 50mm, 55mm, 60mm, 65mm, 70mm, 75mm, 80mm, 90mm, 100mm x 500mm
od80mm, 100mm, 120mm, 150mm, 200mm x 100mm
For more data & information, pls mail to sales@3Arubber.com
When you enquiry, pls confirm the hardness, color, size, drawing and quantity
