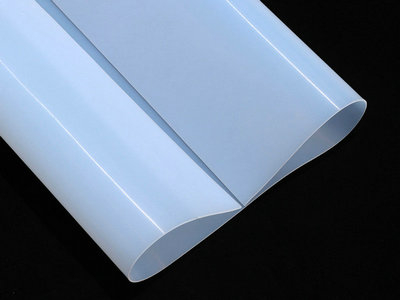

Silicone Sheet, Silicone Membrane

  • 3A1001

  • Translucent, Dark Red, Milk White, Black, Grey, Blue etc.

Description: the silicone sheet, silicone membrane, silicone roll are made with high quality silicone material on special rotocure vulcanizer or plain press vulcanizer according to the different request size from the buyers. General silicone sheet 0.5-12mm x 0.5-1.5m x 1-10m produce on 4rollers rotocure vulcanizer, super width and special silicone sheet 1.0-8.0mm x 1.5-3.8m x 10-20m produce on 2rollers rotocure vulcanizer, super thin and special silicone sheet 0.1-1.0mm x 0.3-1.0m x 25-50m produce on special oven road vulcanizer, super thick silicone sheet produce on plain press vulcanizer. We depend on the advanced manage, innovative technique and strict quality control with excellent silicone material and vulcanizer machine, ravel out the problem of lower smooth surface and high thickness tolerance of rotocure vulcanizer machine, and also ravel out the problem of restricted width, length and visible joint on press vulcanizing machine. It is triumphantly without joint and with infinite length under the above mentioned excellence. We have the super-wide drum-type vulcanizing press with 4000mm width and high quality products  maximum width 3800mm seamless without joint. High quality silicone rubber with good performance of anti-aging, ozone resistance, heat-resistant, electric insulation, oil resistance, solvent resistance, corrosion resistant, nonpoisonous and tasteless, pollution-free. Working in air, water, oil and other medium at the temperature of -60°C - +260°C(moment maximum 300°C) with the high stability, reliability and surface inactive without sticky. Apply to punch all kinds of rubber seal, rubber gasket or special for wooden PVC vacuum laminator, steel door vacuum laminator, safety glass vacuum laminating bags, solar photovoltaic module vacuum laminator, hot press laminator, card press laminator and others application etc.


material: 100% virgin HTV silicone material

grade: industrial grade, food grade, medical grade, FDA grade with postcured

quality: high tear resistant, middle tear resistant, general tear resistant

color: translucent, dark red, black, milk white, grey, blue etc.

surface: smooth/smooth, smooth/impression fabric, smooth/sand or double impression fabric

reinforce: insert 1 PLY fiberglass fabric, aramid fabric or wire mesh SS201, SS304, SS316

tensile strength: 7.5-12.0Mpa

hardness: 10, 20, 30, 40, 50, 60, 70, 80+/-5shore A

elongation: 350%-720%

density: 1.25-1.50g/cm3

tear strength: 26-42N/mm

working temperature: -60°C - +260°C(moment 300°C)

thickness: 0.1-50mm

width: 0.1-3.6m

length: 1-50m

standard size:

0.1-1.0mm x 0.3-1.0m x 25-50m

0.5-12.0mm x 0.5-1.5m x 10-20m

10.0-50.0mm x 0.5/1.0/1.2/1.5m x 1-20m

1.0-8.0mm x 1.5-3.8m x 10-20m

OEM & customized size are agreed

packing in rolls, pallets or crate

Special Silicone Membrane:

silicone membrane, grey, 9.8Mpa, 40shore A, 750%, 42N/mm Germany silicone for "+" and "-" press on wooden PVC vacuum laminator

silicone membrane, translucent, 7.5Mpa, 50shore A, 400%, 26N/mm Chinese silicone for "-" press only on wooden PVC vacuum laminator

silicone membrane, grey, 12.0Mpa, 60-70shore A, 350%, 45N/mm, Germany silicone for photovoltaic module on solar vacuum laminator

silicone membrane, sky blue, 7.5Mpa, 50shore A, 350%, 26N/mm, Chinese silicone for safety glass on glass vacuum bag and laminator

silicone membrane, dark blue, 8.0Mpa, 57shore A, 450%, 30N/mm, Chinese silicone for safety glass on glass vacuum bag and laminator

Special supply FDA grade silicone sheet with postcure and antistatic silicone sheet with fire-resistant, black color, smooth surface

Special supply black antistatic silicone sheet backing with or without adhesive 3M, Thickness 0.2, 0.5, 0.8, 1.0, 1.2, 1.5, 2.0, 3.0mm

For more data & information, pls mail to

When you enquiry, pls confirm the hardness, color, size and quantity

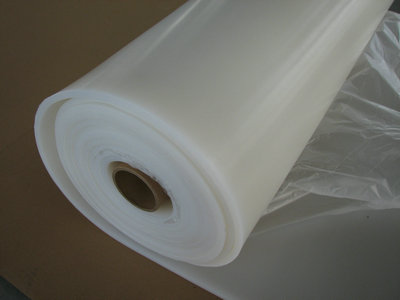

Silicone Sheet-362     Silicone Sheet-313

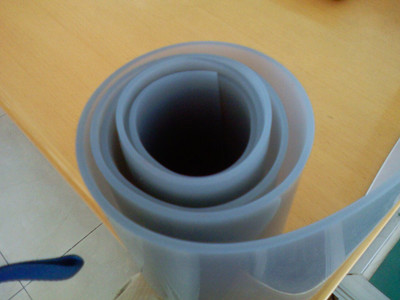

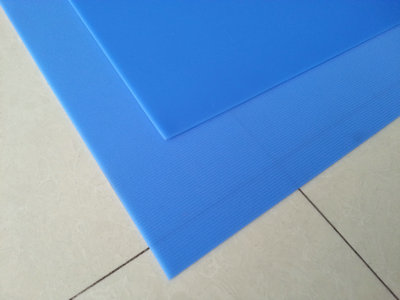

Silicone Sheet-006     silicone sheet-204_副本

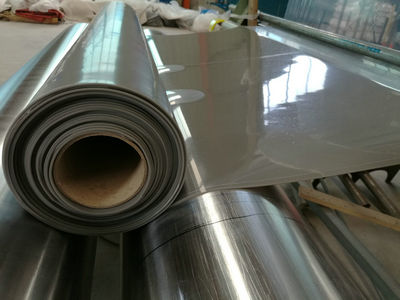

Silicone Sheet-840     Silicone Sheet-804

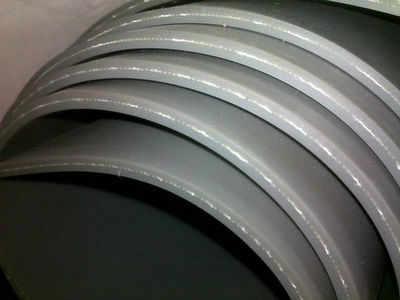

Silicone Sheet-476     Silicone Sheet-095
