Rubber Fabric, Rubber Diaphragm

  • 3A5009

  • Black, Red, Yellow, Grey, Blue etc.

Description: the rubber fabric, rubber diaphragm are made with different fabrics and rubber materials on special rotocure machine. Different nylon fabric, polyester fabric, EP fabric, glassfiber fabric and aramid fabric coad all kinds of rubber material of hypalon, nitrile, neoprene, silicone, fluorubber etc. Hypalon resistant weather and water, rugged and yet are lightweight and easy to handle for inflatable boats, neoprene resistant acid alkaline, nitrile resistant oil, silicone and viton resistant high heat, corrosion - resistant colorful coated fabrics are used for hatch and boat covers, radomes, inflated structures, and are ideal for quality awnings, boating garb, convertible tops and other consumer products. Apply to produce all kinds of inflatable boats, rafts, life-float, high-speed train, bus, rubber diaphragm, rubber gasket and other special purpose.


material: coated hypalon, neoprene, nitrile, silicone, fluorubber etc.

Insertion: reinforce and insert 1-3PLY cotton, polyester, nylon, glassfiber, aramid, EP fabric

color: black, red, yellow, grey, blue, white etc.

surface: smooth or impression fabric

tensile strength: 8.0Mpa

hardness: 60-70shore A

elongation: 350%

density: 1.4g/cm3

thickness: 0.4-6.0mm

width: 1.0-1.5m

length: 10, 20, 30, 50m

standard size for NBR fabric:

0.5mm x 1.0m x 10m x 1PLY

0.8mm x 1.0m x 10m x 1PLY

1.0mm x 1.0m x 10m x 1PLY

1.5mm x 1.0m x 10m x 1PLY

2.0mm x 1.0m x 10m x 1PLY

3.0mm x 1.0m x 10m x 2PLY

4.0mm x 1.0m x 10m x 2PLY

5.0mm x 1.0m x 10m x 2PLY

6.0mm x 1.0m x 10m x 2PLY

Standard size for hypalon fabric:

555dtex-500deniers-710g/sqm, 0.6mm x 1.2m x 50m, hypalon/hypalon

1100dtex-990deniers-1300g/sqm,1.0mm x 1.5m x 50m, hypalon/neoprene, hypalon/hypalon

1670dtex-1500deniers-1500g/sqm, 1.2mm x 1.5m x 50m, hypalon/neoprene, hypalon/hypalon

OEM & customized size are agreed

packing in rolls and pallets

For more data & information, pls mail to

When you enquiry, pls confirm the material, color, size and quantity

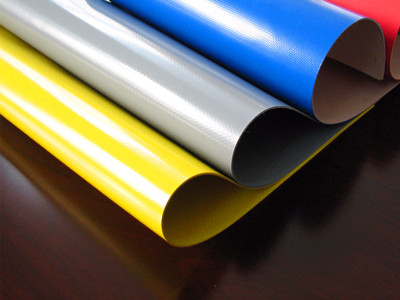

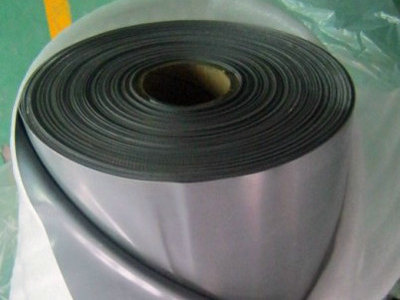

hypalon fabrics-054_副本     hypalon-fabrics_fuben

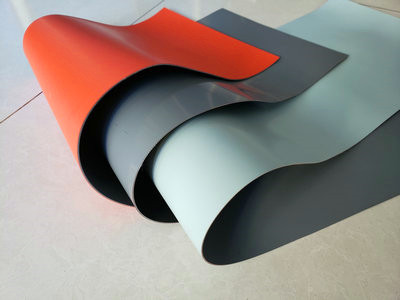

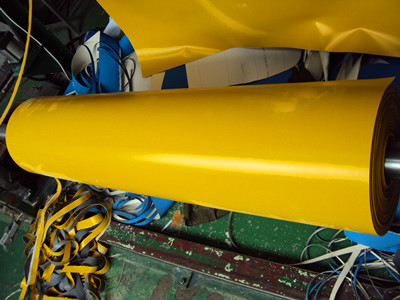

hypalon fabrics-163_副本     Hypalon Fabrics-224

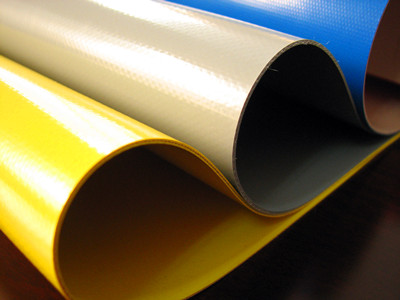

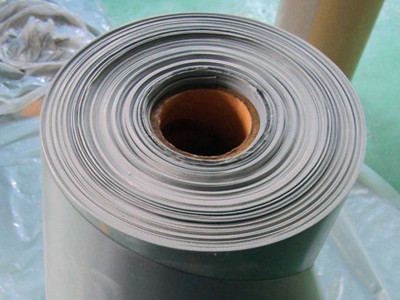

hypalon fabrics-067_副本     hypalon fabrics-051_副本

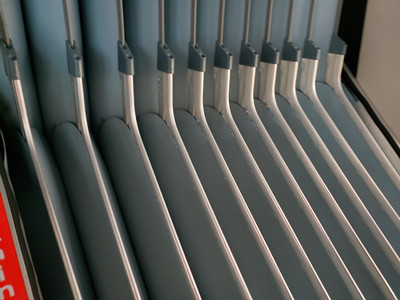

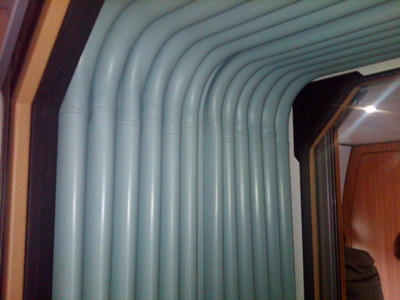

hypalon fabrics-034_副本     20190224_074404_副本
