Antistatic Rubber Sheet, ESD Rubber Sheet
You are here: Home » Products » Rubber Sheets » Antistatic Rubber Sheet, ESD Rubber Sheet

PRODUCT DETAIL

Share to:

Antistatic Rubber Sheet, ESD Rubber Sheet

Quantity:
  • 3A5010
  • Green/Black, Blue/Black, Grey/Black, Black/Black

Description: the antistatic rubber sheet, ESD rubber sheet are made by drum-type vulcanizing press(ROTOCURE) with high quality nitrile-butadiene rubber(NBR), special prescription and produce technology with best performance of antistatic, ESD Rubber Sheet also named antistatic rubber sheet, it is a logogram of Electro-Static Discharge(ESD) rubber sheet under moderate hardness and high tensile strength, no smell and good abrasion resistance, oil resistant and elasticity, working under the middling pressure status at the temperature of -35°C - +100°C in air. Apply for the industrial of electronic, textile, printing and dyeing and other place with same or higher request.


Specifications:

material: NBR Rubber

color: green/black, blue/black, grey/black, black/black

surface: shiny/smooth or sand/smooth

top: 107-109ohm

bottom: 103-105ohm

attenuation time of electrostatic pressure: 0.1S

tensile strength: 6-8Mpa

hardness: 70+/-5shore A

elongation: 300%

density: 1.4g/cm3

working temperature: -35°C - +100°C

thickness: 2-3mm

width: 0.6, 0.7, 0.8, 0.9, 1.0, 1.1, 1.2mm

length: 10-20m

***when you enquiry, pls confirm the color, size and quantity***

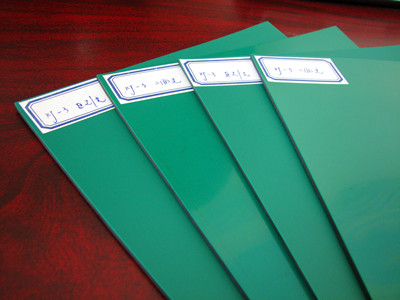

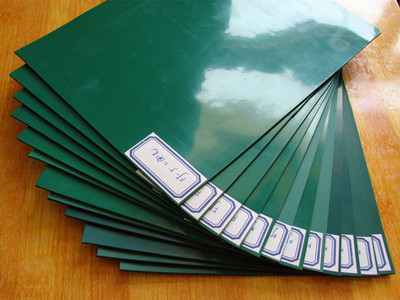

esd rubber sheet-027_副本       esd rubber sheet-034_副本

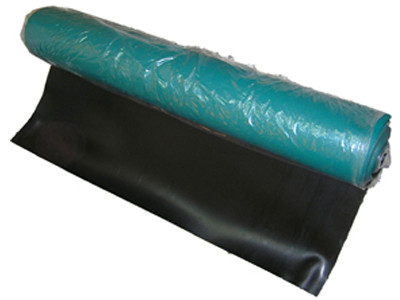

esd rubber sheet-058_副本       esd rubber sheet-047_副本

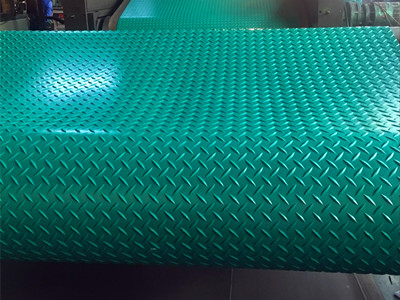

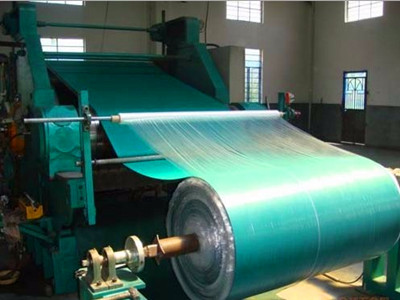

rubber sheet-384_副本       rubber sheet-469_副本

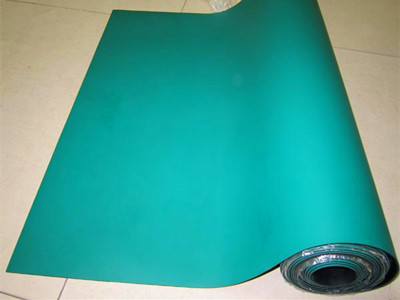

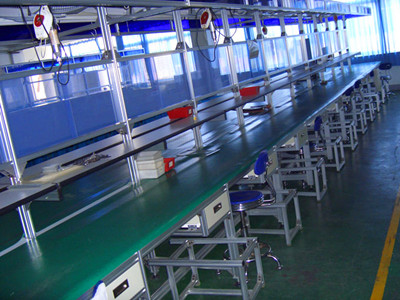

ESD Rubber Sheet-057_副本_副本       esd rubber sheet-059_副本
