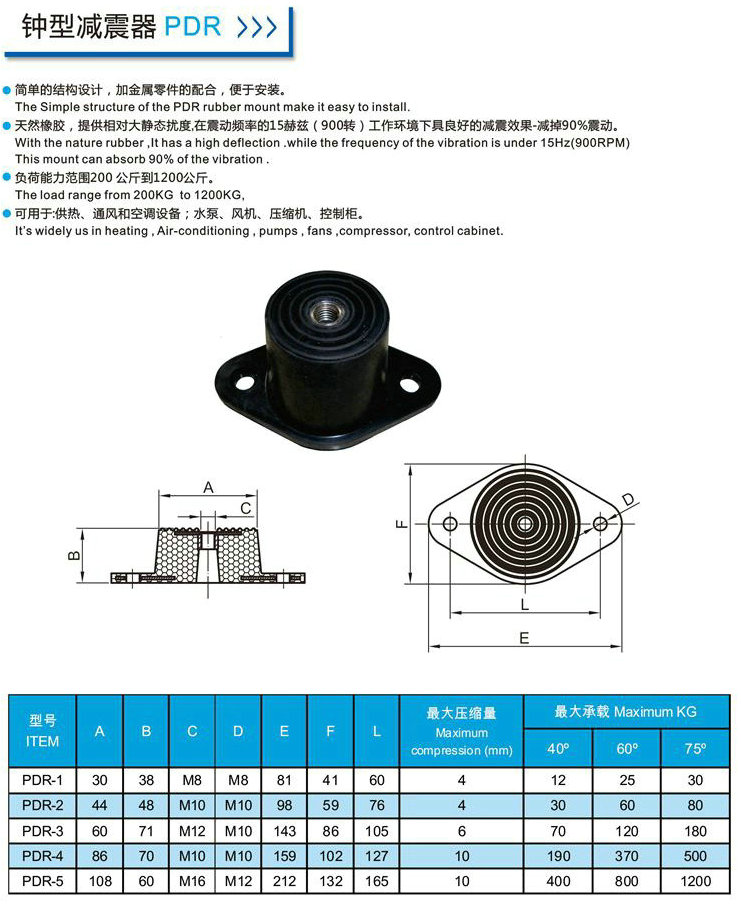

PDR Rubber Mounting, Shock Absorber

  • 3A4016

  • Black

Description: the PDR rubber mounting is one of shock absorber with professional technology and inimitable formulation and full sets of injection moulds without mould line and nothing mould cost.. The top is nut screw made with high quality zinc coated metal sheet, the bottom is support metal sheet with 2 stockets, the middle is high quality rubber of NBR, NR with full adhesive between the rubber and metal parts. It is excellent properties of anti-vibration on axial and lateral for generators, engines, motors system, small rubber compress but higher load, and it help to get more safety with special design of safety lock. Apply to anti-vibration and shock absorption for all kinds generators, engines, motors, compressor, pump, refrigerator and other metal system.


material: white znic-plated steel + black rubber

rubber: NR, NBR(default is NR 60shore A)

quality: industrial grade

color: black

top: metal nut with screw thread

middle: high tensile rubber

bottom: metal seat with holes

surface: smooth

tensile strength: 8-15Mpa

hardness: 40, 60, 75+/-5shore A

elongation: 350%

density: 1.4g/cm3

tear strength: 2.7KN/m

working temperature: -40°C - +120°C

working frequency: 15HZ@900rpm

size: standard without mould cost

OEM & customized size are agreed

packing in bags, cartons and crates

For more data & information, pls mail to sales@3Arubber.com

When you enquiry, pls confirm the item number and quantity
