3A Rubber
Our service catchword is "EXCELLENCE QUALITY SINCERE SERVICE". We hope that we shall become your best ideal business partner and reliable friend!
 |
| Quantity: | |
|---|---|
3A Rubber
3A4015
Black
Description: the AV rubber mounting is a rubber shock absorber made with professional technology, inimitable formulation and full sets of injection moulds without mould line and nothing mould cost. The two sides are male bolts made with high quality black coated metal and standard screwthread, the middle is high quality rubber of NR, NBR, EPDM, SBR etc.(default rubber is NR 55-60shore A). It is standard shock absorber typically used for fixed or flexible fastener devices, suitable for a variety of applications, especially elastic suspension and vibration isolation of machines and a variety of machinery, centrifuge industrial fans, small electronics, pumps, dryers, washing machines, electric motors, measuring equipments.
Specifications:
elastic elements: rubber of NR, NBR, EPDM, SBR etc.(default is NR 55-60shore A)
metal parts: black plated steel
quality: industrial grade
color: black
top: screw bolt
middle: rubber
bottom: screw bolt
surface: smooth
tensile strength: 8-15Mpa
hardness: 40, 50, 60+/-5shore A
elongation: 350%
density: 1.4g/cm3
tear strength: 2.7KN/m
application temperature: -35°C ~ +80°C
size: standard without mould cost
OEM & customized size are agreed
packing in bags, cartons and crates
When you enquiry, pls confirm the quantity, item number or your drawings

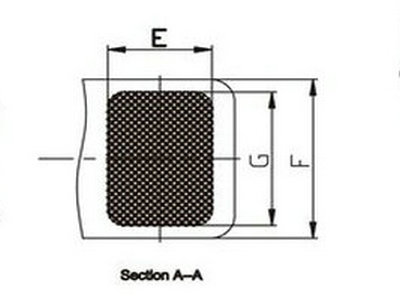

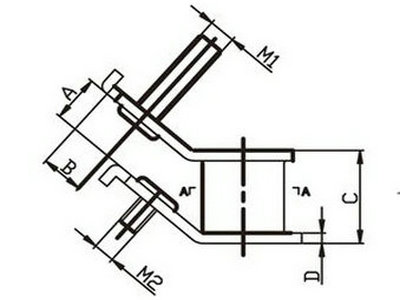

| Item | Size(mm) | M1 | M2 | ||||||
| A | B | C | D | E | F | G | |||
| AV36 | 18 | 16 | 36 | 4 | 30 | 50 | 42 | M10 x 36 | M8 x 12 |
| AV66 | 20.5 | 15 | 36 | 3 | 38 | 66 | 60 | M10 x 42 | M10 x 15 |
