Marine Rubber Mounting, Shock Absorber

Availability:
Quantity:
  • 3A4010
  • Natural Galvanized

Description: the marine rubber mounting is one of bell-type shock absorber screw with professional technology and inimitable formulation and full sets of injection moulds without mould line and nothing mould cost.. It is easy install with small size and designed for enginee on ship. The top is rectangle cap of female screw made with high quality zinc coated metal sheet, the bottom is support metal sheet with 2 stockets, the middle is high quality rubber of NBR, NR with full adhesive between the rubber and metal parts. It is a overload protection shock absorber for marine engine that can be used in a wide MARINE variety of applications for diesel generator sets and marine engines to provide effective noise and vibration isolation. The marine mounts have a low compression design, easy to install, resistant high tensile of compressive and the rubber is loaded in shear and compression and provide 3 way axis control with vertical elasticity, improved vibration isolation on the axis. It is excellent properties of anti-vibration on axial and lateral for generators, engines, motors system with 32-3000kgs and less than 8Hz, small rubber compress but higher load, and it help to get more safety with special design of safety lock. Apply to anti-vibration and shock absorption for marine generators, engines, motors on ship and vessel.


Specifications:

type: marine 1,2,3

material: blue zinc-plated steel or SS304, SS316 customed under moq

rubber: NR, NBR(default is NR 60shore A)

quality: industrial grade

color: natural galvanized

top: metal cap with screw thread

middle: high tensile rubber

bottom: metal seat with grooves

surface: smooth

tensile strength: 8-15Mpa

hardness: 45, 50, 60, 70, 80+/-5shore A

elongation: 350%

density: 1.4g/cm3

tear strength: 2.7KN/m

working temperature: -40°C - +120°C

size: standard without mould cost

OEM & customized size are agreed

packing in bags, cartons and crates

For more data & information, pls mail to sales@3Arubber.com

When you enquiry, pls confirm the item number and quantity

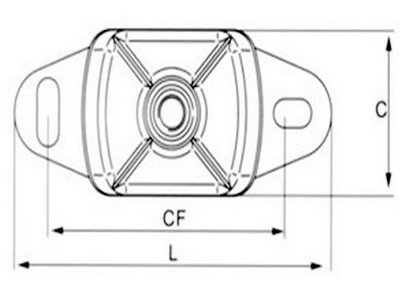

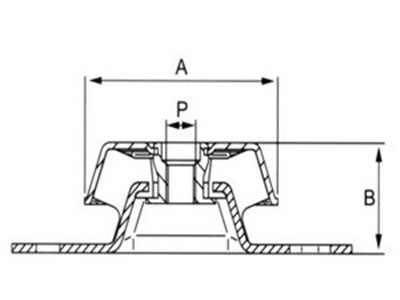

     rubber mounting marine-002_副本     rubber mounting marine-001_副本


Item Hardness Size (mm) Load Max   Load Compression
SH A A B C P CF L Kg/mm Kgs mm
Marine1 8038M12W 45 80 38 60 M12 100 120 9 36 4
Marine1 8038M12K 50 80 38 60 M12 100 120 13 52 4
Marine1 8038M12M 60 80 38 60 M12 100 120 16 64 4
Marine1 8038M12H 70 80 38 60 M12 100 120 24 96 4
Marine2 10450M16XW 35 104 50 78 M16 140 186 16 80 5
Marine2 10450M16W 45 104 50 78 M16 140 186 24 120 5
Marine2 10450M16M 60 104 50 78 M16 140 186 38 190 5
Marine2 10450M16H 70 104 50 78 M16 140 186 60 300 5
Marine2 10450M16XH 80 104 50 78 M16 140 186 95 475 5
Marine3 13271M20W 45 132 71 112 M20 182 230 55 330 6
Marine3 13271M20M 60 132 71 112 M20 182 230 80 480 6
Marine3 13271M20H 70 132 71 112 M20 182 230 135 810 6
Marine3 13271M20XH 80 132 71 112 M20 182 230 220 880 4
Marine4 200110M24W 45 200 110 190 M24 270 300 100 800 8
Marine4 200110M24M 60 200 110 190 M24 270 300 200 1600 8
Marine4 200110M24H 70 200 110 190 M24 270 300 300 2400 8
Marine4 200110M24XH 80 200 110 190 M24 270 300 500 3000 6
