CN Rubber Mounting, Shock Absorber
You are here: Home » Products » Rubber Mountings » CN Rubber Mounting, Shock Absorber

PRODUCT DETAIL

Share to:

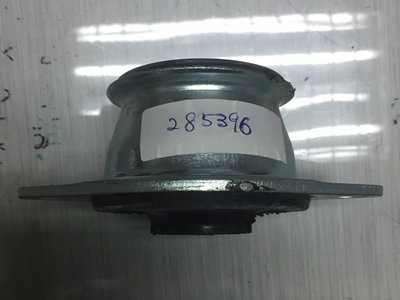

CN Rubber Mounting, Shock Absorber

Quantity:
  • 3A4013
  • Natural Color

Description: the CN rubber mounting is one of bell-type shock absorber screw with professional technology and inimitable formulation and full sets of injection moulds without mould line and nothing mould cost.. The top and bottom are hole washer made with high quality zinc coated metal sheet, the middle is high quality rubber of NR with full adhesive between the rubber and metal parts. It is excellent properties of anti-vibration on axial and lateral for generators, engines, motors system, small rubber compress but higher load, and it help to get more safety with special design of safety lock. Apply to anti-vibration and shock absorption for all kinds generators, engines, motors, compressor, pump, refrigerator and other metal system.


Specifications:

material: galvanized metal + rubber

rubber: NR, NBR(default is NR 60shore A)

quality: industrial grade

color: natural galvanized color

top: hole washer

middle: high tensile rubber

bottom: hole washer

surface: smooth

tensile strength: 8-12Mpa

hardness: 50, 60, 70+/-5shore A

elongation: 350%

density: 1.4g/cm3

working temperature: -40°C - +120°C

working frequency: 500-3000HZ

size: standard without mould cost

packing in cartons

OEM & customized size are agreed

***when you order, pls confirm the quantity and product code number or your drawings***

CN1

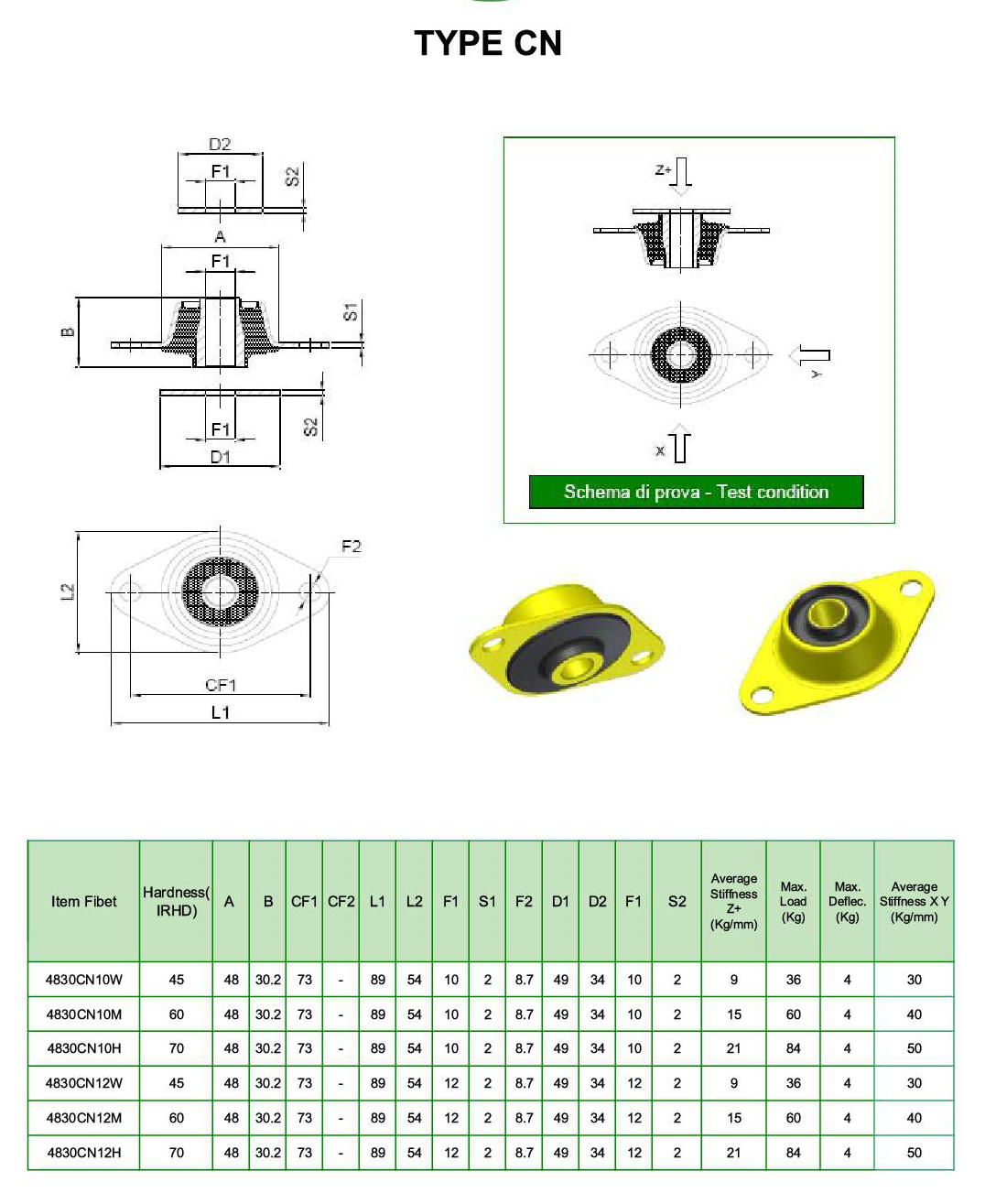

CN2

CN3

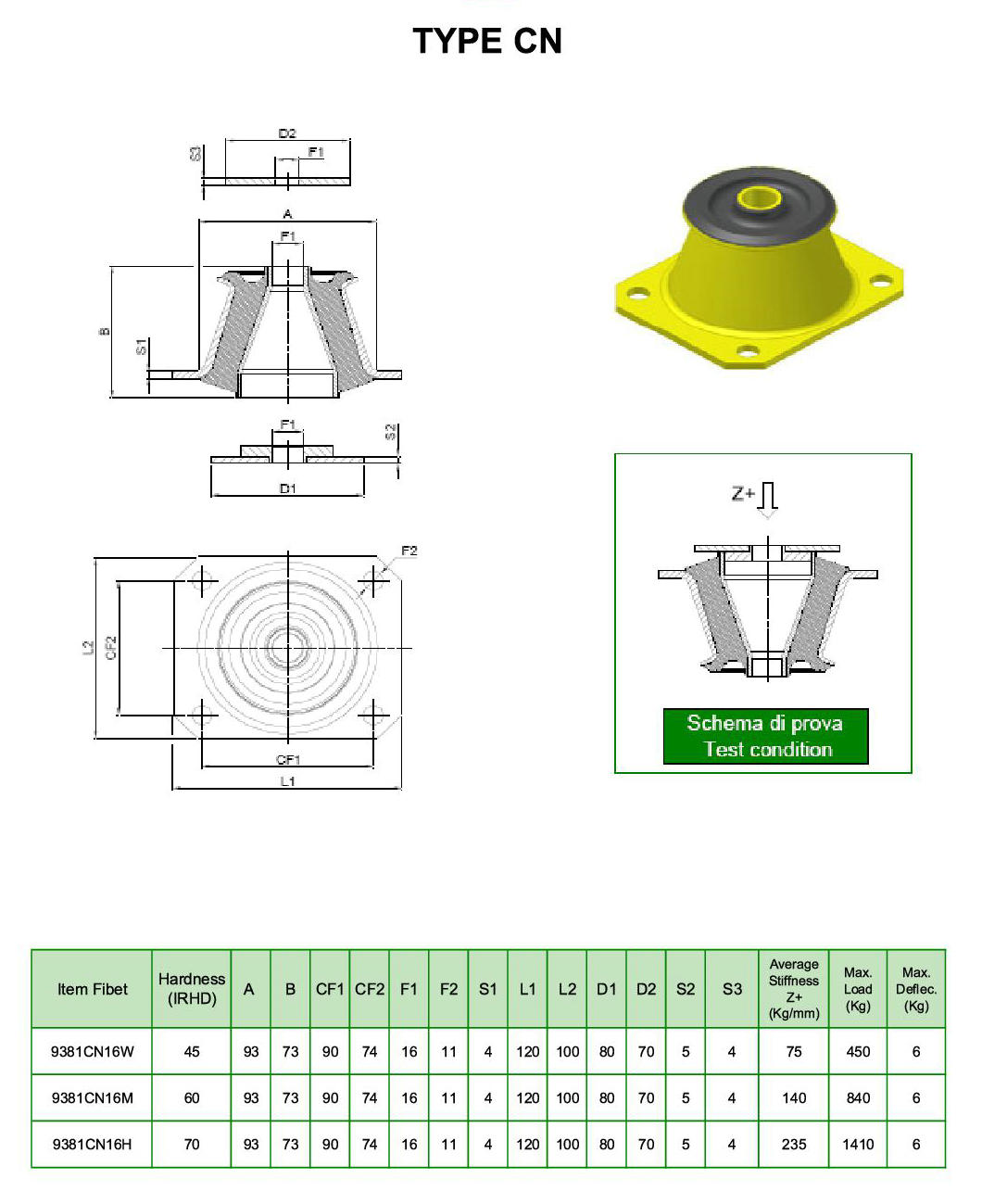

CN4

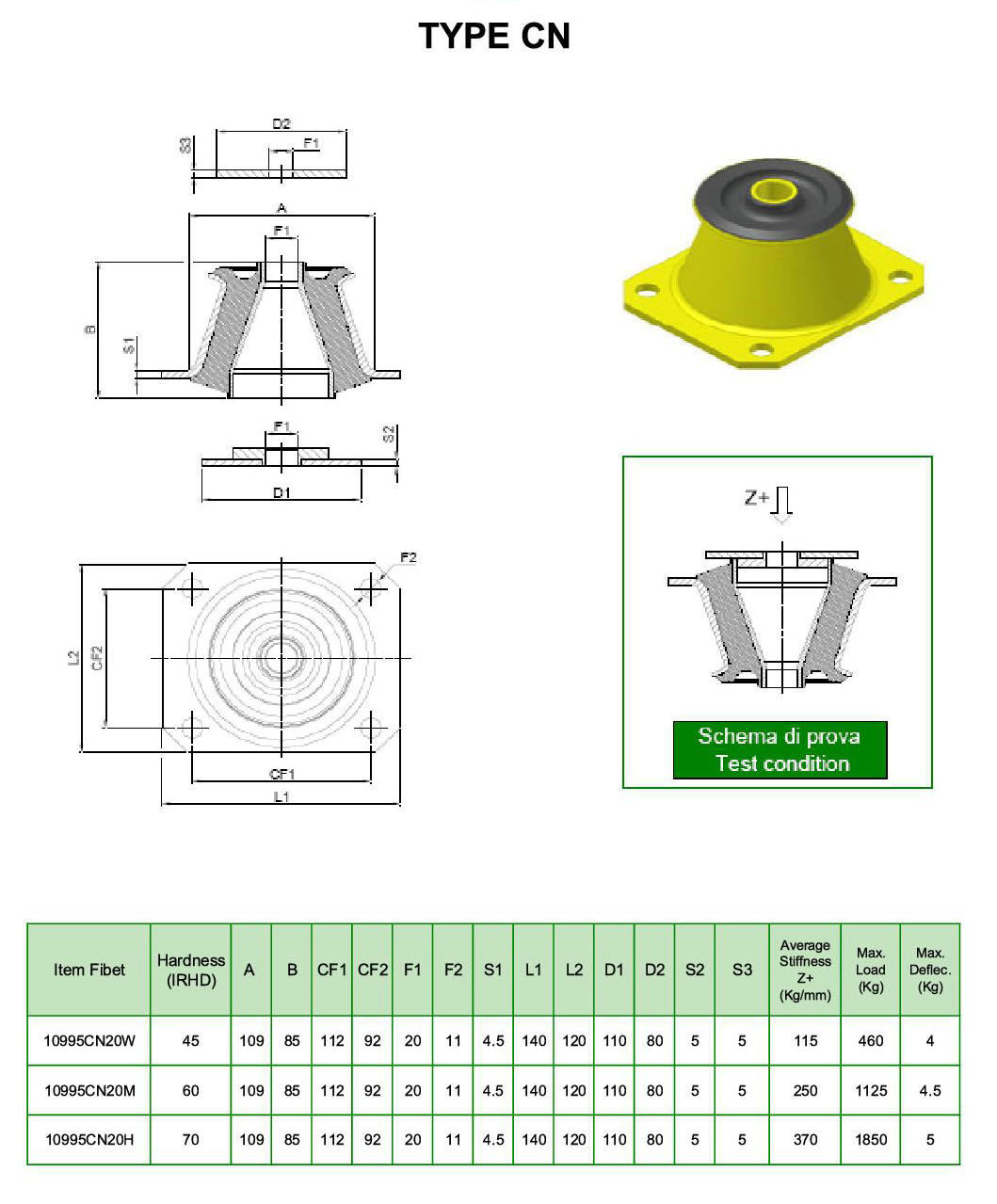

CN5

CN6
