3A Rubber
3A4001
Black

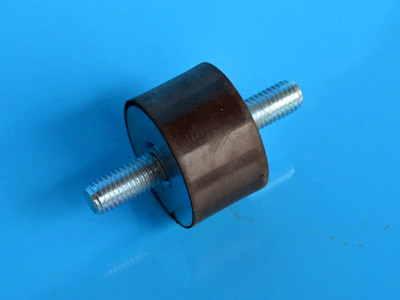

Description: the A-MM rubber mounting, VV rubber mounting (A-MM = VV type) is a rubber shock absorber screw made with professional technology, inimitable formulation and full sets of injection moulds without mould line and nothing mould cost. The two sides are male bolts made with high quality zinc coated metal, SS304, SS316 and standard screwthread, the middle is high quality rubber of NR, NBR, EPDM, SBR etc.(default rubber is NR 55-60shore A). It is standard shock absorber typically used for fixed or flexible fastener devices, suitable for a variety of applications, especially elastic suspension and vibration isolation of machines and a variety of machinery, centrifuge industrial fans, small electronics, pumps, dryers, washing machines, electric motors, measuring equipments, inverter and compressor speed at 1200rpm/min or more mechanical equipment selection, installation is simple and specification, diameter 10-100mm various size are available.
Specifications:
type: A-MM = VV type
elastic elements: rubber of NR, NBR, EPDM, SBR etc.(default is NR 60shore A)
metal parts: white zinc-plated steel or customized SS304, SS316
quality: industrial grade
color: black rubber
top: screw bolt
middle: rubber
bottom: screw bolt
surface: smooth
tensile strength: 8-15Mpa
hardness: 40, 50, 60+/-5shore A
elongation: 350%
density: 1.4g/cm3
tear strength: 2.7KN/m
application temperature: -40°C ~ +80°C
size: standard without mould cost
OEM & customized size are agreed
packing in bags, cartons and crates
When you enquiry, pls confirm the item number and quantity

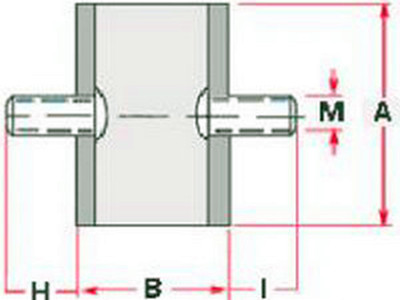

Code (A-MM = VV Type) | A | B | M | H/I |
mm | mm | mm | mm | |
A-MM1008M4 | 10 | 8 | M4 | 6.5-8-10 |
A-MM1010M4 | 10 | 10 | M4 | 6.5-8-10 |
A-MM1015M4 | 10 | 15 | M4 | 6.5-8-10 |
A-MM1508M4 | 15 | 8 | M4 | 6-8-10-14 |
A-MM1510M4 | 15 | 10 | M4 | 6-8-10-14 |
A-MM1515M4 | 15 | 15 | M4 | 6-8-10-14 |
A-MM1520M4 | 15 | 20 | M4 | 6-8-10-14 |
A-MM1525M4 | 15 | 25 | M4 | 8-10 |
A-MM1508M5 | 15 | 8 | M5 | 8-10 |
A-MM1510M5 | 15 | 10 | M5 | 8-10 |
A-MM1520M5 | 15 | 20 | M5 | 8-10 |
A-MM1525M5 | 15 | 25 | M5 | 8-10 |
A-MM1610M4 | 16 | 10 | M4 | 8-10-12 |
A-MM1615M4 | 16 | 15 | M4 | 8-10-12 |
A-MM1620M4 | 16 | 20 | M4 | 8-10-12 |
A-MM1610M5 | 16 | 10 | M5 | 8-10-12 |
A-MM1615M5 | 16 | 15 | M5 | 8-10-12 |
A-MM1620M5 | 16 | 20 | M5 | 8-10-12 |
A-MM2010M6 | 20 | 10 | M6 | 8-10-12-16-18-20 |
A-MM2015M6 | 20 | 15 | M6 | 8-10-12-16-18-20 |
A-MM2020M6 | 20 | 20 | M6 | 8-10-12-16-18-20 |
A-MM2030M6 | 20 | 30 | M6 | 8-10-12-16-18-20 |
A-MM2510M6 | 25 | 10 | M6 | 10-12-14-16-18-20 |
A-MM2513M6 | 25 | 13 | M6 | 10-12-14-16-18-20 |
A-MM2515M6 | 25 | 15 | M6 | 10-12-14-16-18-20 |
A-MM2520M6 | 25 | 20 | M6 | 10-12-14-16-18-20 |
A-MM2522M6 | 25 | 22 | M6 | 10-12-14-16-18-20 |
A-MM2525M6 | 25 | 25 | M6 | 8-10-12-16-18-20 |
A-MM2530M6 | 25 | 30 | M6 | 8-10-12-16-18-20 |
A-MM2510M8 | 25 | 10 | M8 | 8-12-14-18-20 |
A-MM2513M8 | 25 | 13 | M8 | 8-12-14-18-20 |
A-MM2515M8 | 25 | 15 | M8 | 8-12-14-18-20 |
A-MM2520M8 | 25 | 20 | M8 | 8-12-14-18-20 |
A-MM2522M8 | 25 | 22 | M8 | 8-12-14-18-20 |
A-MM2525M8 | 25 | 25 | M8 | 8-12-14-18-20 |
A-MM2530M8 | 25 | 30 | M8 | 8-12-14-18-20 |
A-MM3010M6 | 30 | 10 | M6 | 12-15-18 |
A-MM3012M6 | 30 | 12 | M6 | 12-15-18 |
A-MM3015M6 | 30 | 15 | M6 | 12-15-18 |
A-MM3017M6 | 30 | 17 | M6 | 12-15-18 |
A-MM3020M6 | 30 | 20 | M6 | 12-15-18 |
A-MM3022M6 | 30 | 22 | M6 | 12-15-18 |
A-MM3025M6 | 30 | 25 | M6 | 12-15-18 |
A-MM3030M6 | 30 | 30 | M6 | 12-15-18 |
A-MM3035M6 | 30 | 35 | M6 | 12-15-18 |
A-MM3040M6 | 30 | 40 | M6 | 12-15-18 |
A-MM3010M8 | 30 | 10 | M8 | 14-18-20-23-25-35 |
A-MM3012M8 | 30 | 12 | M8 | 14-18-20-23-25-35 |
A-MM3015M8 | 30 | 15 | M8 | 14-18-20-23-25-35 |
A-MM3017M8 | 30 | 17 | M8 | 14-18-20-23-25-35 |
A-MM3020M8 | 30 | 20 | M8 | 14-18-20-23-25-35 |
A-MM3022M8 | 30 | 22 | M8 | 14-18-20-23-25-35 |
A-MM3025M8 | 30 | 25 | M8 | 14-18-20-23-25-35 |
A-MM3030M8 | 30 | 30 | M8 | 14-18-20-23-25-35 |
A-MM3040M8 | 30 | 40 | M8 | 14-18-20-23-25-35 |
A-MM4020M8 | 40 | 20 | M8 | 14-18-20-23-25-35 |
A-MM4025M8 | 40 | 25 | M8 | 14-18-20-23-25-35 |
A-MM4028M8 | 40 | 28 | M8 | 14-18-20-23-25-35 |
A-MM4030M8 | 40 | 30 | M8 | 14-18-20-23-25-35 |
A-MM4035M8 | 40 | 35 | M8 | 14-18-20-23-25-35 |
A-MM4040M8 | 40 | 40 | M8 | 14-18-20-23-25-35 |
A-MM4045M8 | 40 | 45 | M8 | 14-18-20-23-25-35 |
A-MM4050M8 | 40 | 50 | M8 | 14-18-20-23-25-35 |
A-MM4015M10 | 40 | 15 | M10 | 15-18.5-20-25-28-35 |
A-MM4020M10 | 40 | 20 | M10 | 15-18.5-20-25-28-35 |
A-MM4025M10 | 40 | 25 | M10 | 15-18.5-20-25-28-35 |
A-MM4028M10 | 40 | 28 | M10 | 15-18.5-20-25-28-35 |
A-MM4030M10 | 40 | 30 | M10 | 15-18.5-20-25-28-35 |
A-MM4035M10 | 40 | 35 | M10 | 15-18.5-20-25-28-35 |
A-MM4040M10 | 40 | 40 | M10 | 15-18.5-20-25-28-35 |
A-MM4045M10 | 40 | 45 | M10 | 15-18.5-20-25-28-35 |
A-MM5015M10 | 50 | 15 | M10 | 15-18.5-20-25-28-35 |
A-MM5020M10 | 50 | 20 | M10 | 15-18.5-20-25-28-35 |
A-MM5025M10 | 50 | 25 | M10 | 15-18.5-20-25-28-35 |
A-MM5030M10 | 50 | 30 | M10 | 15-18.5-20-25-28-35 |
A-MM5040M10 | 50 | 40 | M10 | 15-18.5-20-25-28-35 |
A-MM5045M10 | 50 | 45 | M10 | 15-18.5-20-25-28-35 |
A-MM5050M10 | 50 | 50 | M10 | 15-18.5-20-25-28-35 |
A-MM6035M10 | 60 | 35 | M10 | 15-18.5-20-25-28-35 |
A-MM6040M10 | 60 | 40 | M10 | 15-18.5-20-25-28-35 |
A-MM6045M10 | 60 | 45 | M10 | 15-18.5-20-25-28-35 |
A-MM6050M10 | 60 | 50 | M10 | 15-18.5-20-25-28-35 |
A-MM6035M12 | 60 | 35 | M12 | 28-37 |
A-MM6040M12 | 60 | 40 | M12 | 28-37 |
A-MM6045M12 | 60 | 45 | M12 | 28-37 |
A-MM6050M12 | 60 | 50 | M12 | 28-37 |
A-MM7030M12 | 70 | 30 | M12 | 28-37 |
A-MM7040M12 | 70 | 40 | M12 | 28-37 |
A-MM7050M12 | 70 | 50 | M12 | 28-37 |
A-MM7525M12 | 75 | 25 | M12 | 28-37 |
A-MM7530M12 | 75 | 30 | M12 | 28-37 |
A-MM7540M12 | 75 | 40 | M12 | 28-37 |
A-MM7545M12 | 75 | 45 | M12 | 28-37 |
A-MM7550M12 | 75 | 50 | M12 | 28-37 |
A-MM8080M12 | 80 | 80 | M12 | 35-45-57 |
A-MM8080M16 | 80 | 80 | M16 | 35-45-57 |
A-MM10040M16 | 100 | 40 | M16 | 35-45-57 |
A-MM10050M16 | 100 | 50 | M16 | 35-45-57 |
A-MM10055M16 | 100 | 55 | M16 | 35-45-57 |
A-MM10060M16 | 100 | 60 | M16 | 35-45-57 |
A-MM100100M16 | 100 | 100 | M16 | 35-45-57 |
Description: the A-MM rubber mounting, VV rubber mounting (A-MM = VV type) is a rubber shock absorber screw made with professional technology, inimitable formulation and full sets of injection moulds without mould line and nothing mould cost. The two sides are male bolts made with high quality zinc coated metal, SS304, SS316 and standard screwthread, the middle is high quality rubber of NR, NBR, EPDM, SBR etc.(default rubber is NR 55-60shore A). It is standard shock absorber typically used for fixed or flexible fastener devices, suitable for a variety of applications, especially elastic suspension and vibration isolation of machines and a variety of machinery, centrifuge industrial fans, small electronics, pumps, dryers, washing machines, electric motors, measuring equipments, inverter and compressor speed at 1200rpm/min or more mechanical equipment selection, installation is simple and specification, diameter 10-100mm various size are available.
Specifications:
type: A-MM = VV type
elastic elements: rubber of NR, NBR, EPDM, SBR etc.(default is NR 60shore A)
metal parts: white zinc-plated steel or customized SS304, SS316
quality: industrial grade
color: black rubber
top: screw bolt
middle: rubber
bottom: screw bolt
surface: smooth
tensile strength: 8-15Mpa
hardness: 40, 50, 60+/-5shore A
elongation: 350%
density: 1.4g/cm3
tear strength: 2.7KN/m
application temperature: -40°C ~ +80°C
size: standard without mould cost
OEM & customized size are agreed
packing in bags, cartons and crates
When you enquiry, pls confirm the item number and quantity
Code (A-MM = VV Type) | A | B | M | H/I |
mm | mm | mm | mm | |
A-MM1008M4 | 10 | 8 | M4 | 6.5-8-10 |
A-MM1010M4 | 10 | 10 | M4 | 6.5-8-10 |
A-MM1015M4 | 10 | 15 | M4 | 6.5-8-10 |
A-MM1508M4 | 15 | 8 | M4 | 6-8-10-14 |
A-MM1510M4 | 15 | 10 | M4 | 6-8-10-14 |
A-MM1515M4 | 15 | 15 | M4 | 6-8-10-14 |
A-MM1520M4 | 15 | 20 | M4 | 6-8-10-14 |
A-MM1525M4 | 15 | 25 | M4 | 8-10 |
A-MM1508M5 | 15 | 8 | M5 | 8-10 |
A-MM1510M5 | 15 | 10 | M5 | 8-10 |
A-MM1520M5 | 15 | 20 | M5 | 8-10 |
A-MM1525M5 | 15 | 25 | M5 | 8-10 |
A-MM1610M4 | 16 | 10 | M4 | 8-10-12 |
A-MM1615M4 | 16 | 15 | M4 | 8-10-12 |
A-MM1620M4 | 16 | 20 | M4 | 8-10-12 |
A-MM1610M5 | 16 | 10 | M5 | 8-10-12 |
A-MM1615M5 | 16 | 15 | M5 | 8-10-12 |
A-MM1620M5 | 16 | 20 | M5 | 8-10-12 |
A-MM2010M6 | 20 | 10 | M6 | 8-10-12-16-18-20 |
A-MM2015M6 | 20 | 15 | M6 | 8-10-12-16-18-20 |
A-MM2020M6 | 20 | 20 | M6 | 8-10-12-16-18-20 |
A-MM2030M6 | 20 | 30 | M6 | 8-10-12-16-18-20 |
A-MM2510M6 | 25 | 10 | M6 | 10-12-14-16-18-20 |
A-MM2513M6 | 25 | 13 | M6 | 10-12-14-16-18-20 |
A-MM2515M6 | 25 | 15 | M6 | 10-12-14-16-18-20 |
A-MM2520M6 | 25 | 20 | M6 | 10-12-14-16-18-20 |
A-MM2522M6 | 25 | 22 | M6 | 10-12-14-16-18-20 |
A-MM2525M6 | 25 | 25 | M6 | 8-10-12-16-18-20 |
A-MM2530M6 | 25 | 30 | M6 | 8-10-12-16-18-20 |
A-MM2510M8 | 25 | 10 | M8 | 8-12-14-18-20 |
A-MM2513M8 | 25 | 13 | M8 | 8-12-14-18-20 |
A-MM2515M8 | 25 | 15 | M8 | 8-12-14-18-20 |
A-MM2520M8 | 25 | 20 | M8 | 8-12-14-18-20 |
A-MM2522M8 | 25 | 22 | M8 | 8-12-14-18-20 |
A-MM2525M8 | 25 | 25 | M8 | 8-12-14-18-20 |
A-MM2530M8 | 25 | 30 | M8 | 8-12-14-18-20 |
A-MM3010M6 | 30 | 10 | M6 | 12-15-18 |
A-MM3012M6 | 30 | 12 | M6 | 12-15-18 |
A-MM3015M6 | 30 | 15 | M6 | 12-15-18 |
A-MM3017M6 | 30 | 17 | M6 | 12-15-18 |
A-MM3020M6 | 30 | 20 | M6 | 12-15-18 |
A-MM3022M6 | 30 | 22 | M6 | 12-15-18 |
A-MM3025M6 | 30 | 25 | M6 | 12-15-18 |
A-MM3030M6 | 30 | 30 | M6 | 12-15-18 |
A-MM3035M6 | 30 | 35 | M6 | 12-15-18 |
A-MM3040M6 | 30 | 40 | M6 | 12-15-18 |
A-MM3010M8 | 30 | 10 | M8 | 14-18-20-23-25-35 |
A-MM3012M8 | 30 | 12 | M8 | 14-18-20-23-25-35 |
A-MM3015M8 | 30 | 15 | M8 | 14-18-20-23-25-35 |
A-MM3017M8 | 30 | 17 | M8 | 14-18-20-23-25-35 |
A-MM3020M8 | 30 | 20 | M8 | 14-18-20-23-25-35 |
A-MM3022M8 | 30 | 22 | M8 | 14-18-20-23-25-35 |
A-MM3025M8 | 30 | 25 | M8 | 14-18-20-23-25-35 |
A-MM3030M8 | 30 | 30 | M8 | 14-18-20-23-25-35 |
A-MM3040M8 | 30 | 40 | M8 | 14-18-20-23-25-35 |
A-MM4020M8 | 40 | 20 | M8 | 14-18-20-23-25-35 |
A-MM4025M8 | 40 | 25 | M8 | 14-18-20-23-25-35 |
A-MM4028M8 | 40 | 28 | M8 | 14-18-20-23-25-35 |
A-MM4030M8 | 40 | 30 | M8 | 14-18-20-23-25-35 |
A-MM4035M8 | 40 | 35 | M8 | 14-18-20-23-25-35 |
A-MM4040M8 | 40 | 40 | M8 | 14-18-20-23-25-35 |
A-MM4045M8 | 40 | 45 | M8 | 14-18-20-23-25-35 |
A-MM4050M8 | 40 | 50 | M8 | 14-18-20-23-25-35 |
A-MM4015M10 | 40 | 15 | M10 | 15-18.5-20-25-28-35 |
A-MM4020M10 | 40 | 20 | M10 | 15-18.5-20-25-28-35 |
A-MM4025M10 | 40 | 25 | M10 | 15-18.5-20-25-28-35 |
A-MM4028M10 | 40 | 28 | M10 | 15-18.5-20-25-28-35 |
A-MM4030M10 | 40 | 30 | M10 | 15-18.5-20-25-28-35 |
A-MM4035M10 | 40 | 35 | M10 | 15-18.5-20-25-28-35 |
A-MM4040M10 | 40 | 40 | M10 | 15-18.5-20-25-28-35 |
A-MM4045M10 | 40 | 45 | M10 | 15-18.5-20-25-28-35 |
A-MM5015M10 | 50 | 15 | M10 | 15-18.5-20-25-28-35 |
A-MM5020M10 | 50 | 20 | M10 | 15-18.5-20-25-28-35 |
A-MM5025M10 | 50 | 25 | M10 | 15-18.5-20-25-28-35 |
A-MM5030M10 | 50 | 30 | M10 | 15-18.5-20-25-28-35 |
A-MM5040M10 | 50 | 40 | M10 | 15-18.5-20-25-28-35 |
A-MM5045M10 | 50 | 45 | M10 | 15-18.5-20-25-28-35 |
A-MM5050M10 | 50 | 50 | M10 | 15-18.5-20-25-28-35 |
A-MM6035M10 | 60 | 35 | M10 | 15-18.5-20-25-28-35 |
A-MM6040M10 | 60 | 40 | M10 | 15-18.5-20-25-28-35 |
A-MM6045M10 | 60 | 45 | M10 | 15-18.5-20-25-28-35 |
A-MM6050M10 | 60 | 50 | M10 | 15-18.5-20-25-28-35 |
A-MM6035M12 | 60 | 35 | M12 | 28-37 |
A-MM6040M12 | 60 | 40 | M12 | 28-37 |
A-MM6045M12 | 60 | 45 | M12 | 28-37 |
A-MM6050M12 | 60 | 50 | M12 | 28-37 |
A-MM7030M12 | 70 | 30 | M12 | 28-37 |
A-MM7040M12 | 70 | 40 | M12 | 28-37 |
A-MM7050M12 | 70 | 50 | M12 | 28-37 |
A-MM7525M12 | 75 | 25 | M12 | 28-37 |
A-MM7530M12 | 75 | 30 | M12 | 28-37 |
A-MM7540M12 | 75 | 40 | M12 | 28-37 |
A-MM7545M12 | 75 | 45 | M12 | 28-37 |
A-MM7550M12 | 75 | 50 | M12 | 28-37 |
A-MM8080M12 | 80 | 80 | M12 | 35-45-57 |
A-MM8080M16 | 80 | 80 | M16 | 35-45-57 |
A-MM10040M16 | 100 | 40 | M16 | 35-45-57 |
A-MM10050M16 | 100 | 50 | M16 | 35-45-57 |
A-MM10055M16 | 100 | 55 | M16 | 35-45-57 |
A-MM10060M16 | 100 | 60 | M16 | 35-45-57 |
A-MM100100M16 | 100 | 100 | M16 | 35-45-57 |
