B-MF Rubber Mounting, Shock Absorber
You are here: Home » Products » Rubber Mountings » B-MF Rubber Mounting, Shock Absorber

PRODUCT DETAIL

loading

Share to:
sharethis sharing button

B-MF Rubber Mounting, Shock Absorber

Rubber Mounting
Shock Absorber
B-MM = VD type
Standard Size & Customize
Availability:
Quantity:
  • 3A Rubber

  • 3A4002

  • Black

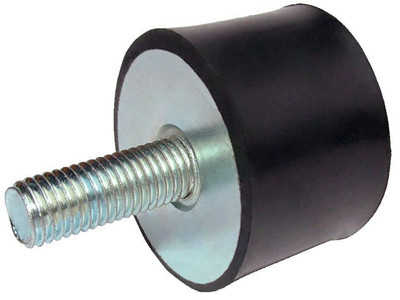

Description: the B-MF rubber mounting, VD rubber mounting (B-MF = VD type) is a rubber shock absorber screw made with professional technology, inimitable formulation and full sets of injection moulds without mould line and nothing mould cost. One side is male bolts and another side is female screw made with high quality zinc coated metal, SS304, SS316 and standard screwthread, the middle is high quality rubber of NR, NBR, EPDM, SBR etc.(default is NR 55-60shore A). It is standard shock absorber typically used for fixed or flexible fastener devices, suitable for a variety of applications, especially elastic suspension and vibration isolation of machines and a variety of machinery, centrifuge industrial fans, small electronics, pumps, dryers, washing machines, electric motors, measuring equipments, inverter and compressor speed at 1200rpm/min or more mechanical equipment selection, installation is simple and specification, diameter 8-100mm various size are available.


Specifications:

type: B-MF = VD type

elastic elements: rubber of NR, NBR, EPDM, SBR etc.(default is NR 60shore A)

metal parts: white zinc-plated steel or customized SS304, SS316

quality: industrial grade

color: black rubber

top: screw bolt

middle: rubber

bottom: screw thread

surface: smooth

tensile strength: 8-15Mpa

hardness: 40, 50, 60+/-5shore A

elongation: 350%

density: 1.4g/cm3

tear strength: 2.7KN/m

application temperature: -40°C ~ +80°C

size: standard without mould cost

OEM & customized size are agreed

packing in bags, cartons and crates

When you enquiry, pls confirm the item number and quantity

rubber mounting b-mf-010_副本     rubber mounting b-mf-2_副本

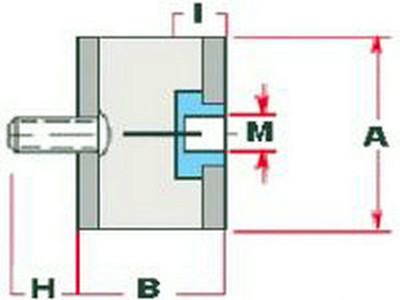

Code (B-MF = VD Type)

A

B

M

H/I

mm mm mm mm

B-MF0808M3

8

8

M3

4-6-10

B-MF1008M4

10

8

M4

6.5-8-10

B-MF1010M4

10

10

M4

6.5-8-10

B-MF1015M4

10

15

M4

6.5-8-10

B-MF1508M4

15

8

M4

6-8-10-14

B-MF1510M4

15

10

M4

6-8-10-14

B-MF1515M4

15

15

M4

6-8-10-14

B-MF1520M4

15

20

M4

6-8-10-14

B-MF1525M4

15

25

M4

8-10

B-MF1508M5

15

8

M5

8-10

B-MF1510M5

15

10

M5

8-10

B-MF1520M5

15

20

M5

8-10

B-MF1525M5

15

25

M5

8-10

B-MF1610M4

16

10

M4

8-10-12

B-MF1615M4

16

15

M4

8-10-12

B-MF1620M4

16

20

M4

8-10-12

B-MF1610M5

16

10

M5

8-10-12

B-MF1615M5

16

15

M5

8-10-12

B-MF1620M5

16

20

M5

8-10-12

B-MF2010M6

20

10

M6

8-10-12-16-18-20

B-MF2015M6

20

15

M6

8-10-12-16-18-20

B-MF2020M6

20

20

M6

8-10-12-16-18-20

B-MF2030M6

20

30

M6

8-10-12-16-18-20

B-MF2510M6

25

10

M6

10-12-14-16-18-20

B-MF2513M6

25

13

M6

10-12-14-16-18-20

B-MF2515M6

25

15

M6

10-12-14-16-18-20

B-MF2520M6

25

20

M6

10-12-14-16-18-20

B-MF2522M6

22

25

M6

10-12-14-16-18-20

B-MF2525M6

25

25

M6

8-10-12-16-18-20

B-MF2530M6

25

30

M6

8-10-12-16-18-20

B-MF2510M8

25

10

M8

8-12-14-18-20

B-MF2513M8

25

13

M8

8-12-14-18-20

B-MF2515M8

25

15

M8

8-12-14-18-20

B-MF2520M8

25

20

M8

8-12-14-18-20

B-MF2522M8

25

22

M8

8-12-14-18-20

B-MF2525M8

25

25

M8

8-12-14-18-20

B-MF2530M8

25

30

M8

8-12-14-18-20

B-MF3010M6

30

10

M6

12-15-18

B-MF3012M6

30

12

M6

12-15-18

B-MF3015M6

30

15

M6

12-15-18

B-MF3017M6

30

17

M6

12-15-18

B-MF3020M6

30

20

M6

12-15-18

B-MF3022M6

30

22

M6

12-15-18

B-MF3025M6

30

25

M6

12-15-18

B-MF3030M6

30

30

M6

12-15-18

B-MF3040M6

30

40

M6

12-15-18

B-MF3010M8

30

10

M8

14-18-20-23-25-35

B-MF3012M8

30

12

M8

14-18-20-23-25-35

B-MF3015M8

30

15

M8

14-18-20-23-25-35

B-MF3017M8

30

17

M8

14-18-20-23-25-35

B-MF3020M8

30

20

M8

14-18-20-23-25-35

B-MF3022M8

30

22

M8

14-18-20-23-25-35

B-MF3025M8

30

25

M8

14-18-20-23-25-35

B-MF3030M8

30

30

M8

14-18-20-23-25-35

B-MF3040M8

30

40

M8

14-18-20-23-25-35

B-MF4010M8

40

10

M8

14-18-20-23-25-35

B-MF4015M8

40

15

M8

14-18-20-23-25-35

B-MF4020M8

40

20

M8

14-18-20-23-25-35

B-MF4025M8

40

25

M8

14-18-20-23-25-35

B-MF4028M8

40

28

M8

14-18-20-23-25-35

B-MF4030M8

40

30

M8

14-18-20-23-25-35

B-MF4035M8

40

35

M8

14-18-20-23-25-35

B-MF4040M8

40

40

M8

14-18-20-23-25-35

B-MF4045M8

40

45

M8

14-18-20-23-25-35

B-MF4010M10

40

10

M10

15-20-25-28-35

B-MF4015M10

40

15

M10

15-20-25-28-35

B-MF4020M10

40

20

M10

15-20-25-28-35

B-MF4025M10

40

25

M10

15-20-25-28-35

B-MF4028M10

40

28

M10

15-20-25-28-35

B-MF4030M10

40

30

M10

15-20-25-28-35

B-MF4035M10

40

35

M10

15-20-25-28-35

B-MF4040M10

40

40

M10

15-20-25-28-35

B-MF4045M10

40

45

M10

15-20-25-28-35

B-MF5015M10

50

15

M10

15-20-25-28-35

B-MF5020M10

50

20

M10

15-20-25-28-35

B-MF5025M10

50

25

M10

15-20-25-28-35

B-MF5030M10

50

30

M10

15-20-25-28-35

B-MF5040M10

50

40

M10

15-20-25-28-35

B-MF5045M10

50

45

M10

15-20-25-28-35

B-MF5050M10

50

50

M10

15-20-25-28-35

B-MF6030M10

60

30

M10

15-20-25-28-35

B-MF6035M10

60

35

M10

15-20-25-28-35

B-MF6040M10

60

40

M10

15-20-25-28-35

B-MF6045M10

60

45

M10

15-20-25-28-35

B-MF6050M10

60

50

M10

15-20-25-28-35

B-MF6030M12

60

30

M12

28-37

B-MF6035M12

60

35

M12

28-37

B-MF6040M12

60

40

M12

28-37

B-MF6045M12

60

45

M12

28-37

B-MF6050M12

60

50

M12

28-37

B-MF7030M12

70

30

M12

28-37

B-MF7040M12

70

40

M12

28-37

B-MF7050M12

70

50

M12

28-37

B-MF7525M12

75

25

M12

28-37

B-MF7530M12

75

30

M12

28-37

B-MF7540M12

75

40

M12

28-37

B-MF7545M12

75

45

M12

28-37

B-MF7550M12

75

50

M12

28-37

B-MF8080M12

80

80

M12

35-45-57

B-MF8080M16

80

80

M16

35-45-57

B-MF10040M16

100

40

M16

35-45-57

B-MF10050M16

100

50

M16

35-45-57

B-MF10055M16

100

55

M16

35-45-57

B-MF10060M16

100

60

M16

35-45-57

B-MF100100M16

100

100

M16

35-45-57
