3A Rubber
3A4011
Natural Galvanized Color

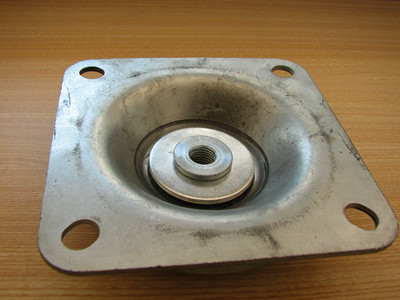

Description: the FRSQ, FRHQ rubber mounting is one of bell-type shock absorber screw with professional technology and inimitable formulation and full sets of injection moulds without mould line and nothing mould cost.. The top is round cap of female screw made with high quality zinc coated metal sheet, the bottom is support metal sheet with 4 stockets, the middle is high quality rubber of NBR, NR with full adhesive between the rubber and metal parts. It is excellent properties of anti-vibration on axial and lateral for generators, engines, motors system with 1500-3500HZ, small rubber compress but higher load, and it help to get more safety with special design of safety lock. Apply to anti-vibration and shock absorption for all kinds generators, engines, motors, compressor, pump, refrigerator and other metal system.
Specifications:
type: FRSQ, FRHQ
material: blue znic-plated steel or customize SS304, SS316
rubber: NR, NBR(default is NR 60shore A)
quality: industrial grade
color: natural galvanized
top: metal cap with screw thread
middle: high tensile rubber
bottom: metal seat with grooves
surface: smooth
tensile strength: 8-15Mpa
hardness: 40, 60+/-5shore A
elongation: 350%
density: 1.4g/cm3
tear strength: 2.7KN/m
working temperature: -35°C - +80°C
working frequency: 1500-3000HZ
size: standard without mould cost
OEM & customized size are agreed
packing in bags, cartons and crates
When you enquiry, pls confirm the item number and quantity

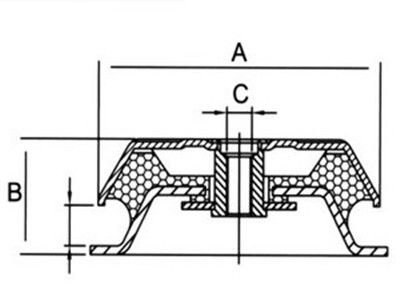

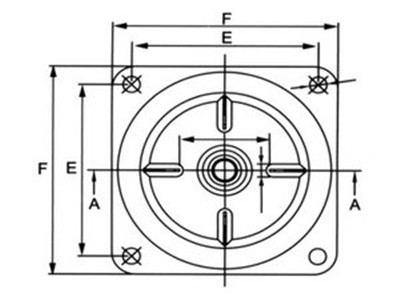

Item | Hardness | Size (mm) | Load | Max Load | Compression | ||||
Shore A | A | B | C | E | F | Kg/mm | Kgs | mm | |
FRSQ15054M16W | 40 | 150 | 54 | M16 | 132 | 170 | 80 | 600 | 6 |
FRSQ15054M16M | 60 | 150 | 54 | M16 | 132 | 170 | 129 | 900 | 7 |
FRSQ15054M18W | 40 | 150 | 54 | M18 | 132 | 170 | 80 | 600 | 6 |
FRSQ15054M18M | 60 | 150 | 54 | M18 | 132 | 170 | 129 | 900 | 7 |
FRSQ15054M20W | 40 | 150 | 54 | M20 | 132 | 170 | 80 | 600 | 6 |
FRSQ15054M20M | 60 | 150 | 54 | M20 | 132 | 170 | 129 | 900 | 7 |
FRSQ18086M16W | 40 | 180 | 86 | M16 | 150 | 190 | 100 | 800 | 10 |
FRSQ18086M16M | 60 | 180 | 86 | M16 | 150 | 190 | 189 | 1700 | 9 |
FRSQ18086M18W | 40 | 180 | 86 | M18 | 150 | 190 | 100 | 800 | 10 |
FRSQ18086M18M | 60 | 180 | 86 | M18 | 150 | 190 | 189 | 1700 | 9 |
FRSQ18086M20W | 40 | 180 | 86 | M20 | 150 | 190 | 100 | 800 | 10 |
FRSQ18086M20M | 60 | 180 | 86 | M20 | 150 | 190 | 189 | 1700 | 9 |
FRSQ220105M16W | 40 | 220 | 105 | M16 | 170 | 220 | 113 | 1700 | 15 |
FRSQ220105M16M | 60 | 220 | 105 | M16 | 170 | 220 | 213 | 2000 | 15 |
FRSQ220105M18W | 40 | 220 | 105 | M18 | 170 | 220 | 113 | 1700 | 15 |
FRSQ220105M18M | 60 | 220 | 105 | M18 | 170 | 220 | 213 | 2000 | 15 |
FRSQ220105M20W | 40 | 220 | 105 | M20 | 170 | 220 | 113 | 1700 | 15 |
FRSQ220105M20M | 60 | 220 | 105 | M20 | 170 | 220 | 213 | 2000 | 15 |
FRHQ15050M16W | 40 | 150 | 50 | M16 | 132 | 170 | 125 | 750 | 6 |
FRHQ15050M16M | 60 | 150 | 50 | M16 | 132 | 170 | 183 | 1100 | 6 |
FRHQ15050M18W | 40 | 150 | 50 | M18 | 132 | 170 | 125 | 750 | 6 |
FRHQ15050M18M | 60 | 150 | 50 | M18 | 132 | 170 | 183 | 1100 | 6 |
FRHQ15050M20W | 40 | 150 | 50 | M20 | 132 | 170 | 125 | 750 | 6 |
FRHQ15050M20M | 60 | 150 | 50 | M20 | 132 | 170 | 183 | 1100 | 6 |
FRHQ18066M16W | 40 | 180 | 66 | M16 | 150 | 190 | 171 | 1200 | 7 |
FRHQ18066M16M | 60 | 180 | 66 | M16 | 150 | 190 | 329 | 2300 | 7 |
FRHQ18066M18W | 40 | 180 | 66 | M18 | 150 | 190 | 171 | 1200 | 7 |
FRHQ18066M18M | 60 | 180 | 66 | M18 | 150 | 190 | 329 | 2300 | 7 |
FRHQ18066M20W | 40 | 180 | 66 | M20 | 150 | 190 | 171 | 1200 | 7 |
FRHQ18066M20M | 60 | 180 | 66 | M20 | 150 | 190 | 329 | 2300 | 7 |
Description: the FRSQ, FRHQ rubber mounting is one of bell-type shock absorber screw with professional technology and inimitable formulation and full sets of injection moulds without mould line and nothing mould cost.. The top is round cap of female screw made with high quality zinc coated metal sheet, the bottom is support metal sheet with 4 stockets, the middle is high quality rubber of NBR, NR with full adhesive between the rubber and metal parts. It is excellent properties of anti-vibration on axial and lateral for generators, engines, motors system with 1500-3500HZ, small rubber compress but higher load, and it help to get more safety with special design of safety lock. Apply to anti-vibration and shock absorption for all kinds generators, engines, motors, compressor, pump, refrigerator and other metal system.
Specifications:
type: FRSQ, FRHQ
material: blue znic-plated steel or customize SS304, SS316
rubber: NR, NBR(default is NR 60shore A)
quality: industrial grade
color: natural galvanized
top: metal cap with screw thread
middle: high tensile rubber
bottom: metal seat with grooves
surface: smooth
tensile strength: 8-15Mpa
hardness: 40, 60+/-5shore A
elongation: 350%
density: 1.4g/cm3
tear strength: 2.7KN/m
working temperature: -35°C - +80°C
working frequency: 1500-3000HZ
size: standard without mould cost
OEM & customized size are agreed
packing in bags, cartons and crates
When you enquiry, pls confirm the item number and quantity
Item | Hardness | Size (mm) | Load | Max Load | Compression | ||||
Shore A | A | B | C | E | F | Kg/mm | Kgs | mm | |
FRSQ15054M16W | 40 | 150 | 54 | M16 | 132 | 170 | 80 | 600 | 6 |
FRSQ15054M16M | 60 | 150 | 54 | M16 | 132 | 170 | 129 | 900 | 7 |
FRSQ15054M18W | 40 | 150 | 54 | M18 | 132 | 170 | 80 | 600 | 6 |
FRSQ15054M18M | 60 | 150 | 54 | M18 | 132 | 170 | 129 | 900 | 7 |
FRSQ15054M20W | 40 | 150 | 54 | M20 | 132 | 170 | 80 | 600 | 6 |
FRSQ15054M20M | 60 | 150 | 54 | M20 | 132 | 170 | 129 | 900 | 7 |
FRSQ18086M16W | 40 | 180 | 86 | M16 | 150 | 190 | 100 | 800 | 10 |
FRSQ18086M16M | 60 | 180 | 86 | M16 | 150 | 190 | 189 | 1700 | 9 |
FRSQ18086M18W | 40 | 180 | 86 | M18 | 150 | 190 | 100 | 800 | 10 |
FRSQ18086M18M | 60 | 180 | 86 | M18 | 150 | 190 | 189 | 1700 | 9 |
FRSQ18086M20W | 40 | 180 | 86 | M20 | 150 | 190 | 100 | 800 | 10 |
FRSQ18086M20M | 60 | 180 | 86 | M20 | 150 | 190 | 189 | 1700 | 9 |
FRSQ220105M16W | 40 | 220 | 105 | M16 | 170 | 220 | 113 | 1700 | 15 |
FRSQ220105M16M | 60 | 220 | 105 | M16 | 170 | 220 | 213 | 2000 | 15 |
FRSQ220105M18W | 40 | 220 | 105 | M18 | 170 | 220 | 113 | 1700 | 15 |
FRSQ220105M18M | 60 | 220 | 105 | M18 | 170 | 220 | 213 | 2000 | 15 |
FRSQ220105M20W | 40 | 220 | 105 | M20 | 170 | 220 | 113 | 1700 | 15 |
FRSQ220105M20M | 60 | 220 | 105 | M20 | 170 | 220 | 213 | 2000 | 15 |
FRHQ15050M16W | 40 | 150 | 50 | M16 | 132 | 170 | 125 | 750 | 6 |
FRHQ15050M16M | 60 | 150 | 50 | M16 | 132 | 170 | 183 | 1100 | 6 |
FRHQ15050M18W | 40 | 150 | 50 | M18 | 132 | 170 | 125 | 750 | 6 |
FRHQ15050M18M | 60 | 150 | 50 | M18 | 132 | 170 | 183 | 1100 | 6 |
FRHQ15050M20W | 40 | 150 | 50 | M20 | 132 | 170 | 125 | 750 | 6 |
FRHQ15050M20M | 60 | 150 | 50 | M20 | 132 | 170 | 183 | 1100 | 6 |
FRHQ18066M16W | 40 | 180 | 66 | M16 | 150 | 190 | 171 | 1200 | 7 |
FRHQ18066M16M | 60 | 180 | 66 | M16 | 150 | 190 | 329 | 2300 | 7 |
FRHQ18066M18W | 40 | 180 | 66 | M18 | 150 | 190 | 171 | 1200 | 7 |
FRHQ18066M18M | 60 | 180 | 66 | M18 | 150 | 190 | 329 | 2300 | 7 |
FRHQ18066M20W | 40 | 180 | 66 | M20 | 150 | 190 | 171 | 1200 | 7 |
FRHQ18066M20M | 60 | 180 | 66 | M20 | 150 | 190 | 329 | 2300 | 7 |
