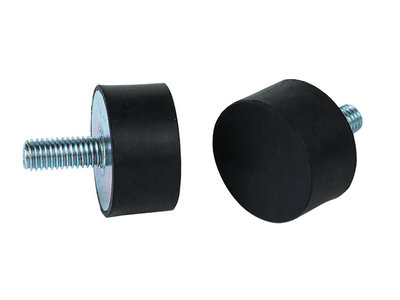

D-PM Rubber Mounting, Shock Absorber

Quantity:
  • 3A4004
  • Black

Description: the D-PM rubber mounting is a rubber shock absorber screw made with professional technology, inimitable formulation and full sets of injection moulds without mould line and nothing mould cost. The one side is male bolt made with high quality zinc coated metal and standard screwthread, another side is plain surface with high quality rubber of NR, NBR, EPDM, SBR etc.(default rubber is NR 60shore A). Apply to the anti-vibration and shock absorption for all kinds machinery, include mobile anti-vibration parts, health care equipment, machinery anti-vibration parts, computer parts.


Specifications:

material: galvanized metal + rubber

rubber: NR, NBR, EPDM, SBR etc.(default is NR 60shore A)

quality: industrial grade

color: black

top: screw bolt

bottom: plate rubber without metal

surface: smooth

tensile strength: 8Mpa

hardness: 40, 50, 60+/-5shore A

elongation: 350%

density: 1.4g/cm3

size: standard without mould cost

packing in cartons

OEM & customized size are agreed

***when you order, pls confirm the quantity and product code number or your drawings***

c467d47a379f8ce7d795a542b71fd34c.webp_副本      rubber mounting d-pm-2_副本

Code A (mm) B (mm) M H (mm)
D-PM0607M3 6 7 M3 10
D-PM0808M3 8 8 M3 10
D-PM1008M4 10 8 M4 6-8-10
D-PM1010M4 10 10 M4 6-8-10
D-PM1508M4 15 8 M4 6.5-10-14
D-PM1510M4 15 10 M4 6.5-10-14
D-PM1515M4 15 15 M4 6.5-10-14
D-PM1520M4 15 20 M4 6.5-10-14
D-PM1525M4 15 25 M4 6.5-10-14
D-PM1508M5 15 8 M5 12-14
D-PM1510M5 15 10 M5 12-14
D-PM1515M5 15 15 M5 12-14
D-PM1520M5 15 20 M5 12-14
D-PM1525M5 15 25 M5 12-14
D-PM1610M4 16 10 M4 8-10-12
D-PM1615M4 16 15 M4 8-10-12
D-PM1620M4 16 20 M4 8-10-12
D-PM1610M5 16 10 M5 8-10-12
D-PM1615M5 16 15 M5 8-10-12
D-PM1620M5 16 20 M5 8-10-12
D-PM2010M6 20 10 M6 8-10-12-16-18-20
D-PM2015M6 20 15 M6 8-10-12-16-18-20
D-PM2020M6 20 20 M6 8-10-12-16-18-20
D-PM2025M6 20 25 M6 8-10-12-16-18-20
D-PM2030M6 20 30 M6 8-10-12-16-18-20
D-PM2510M6 25 10 M6 10-12-14-16-18-20
D-PM2513M6 25 13 M6 10-12-14-16-18-20
D-PM2515M6 25 15 M6 10-12-14-16-18-20
D-PM2520M6 25 20 M6 10-12-14-16-18-20
D-PM2522M6 25 22 M6 10-12-14-16-18-20
D-PM2525M6 25 25 M6 10-12-14-16-18-20
D-PM2530M6 25 30 M6 10-12-14-16-18-20
D-PM2510M8 25 10 M8 14-18-20
D-PM2513M8 25 13 M8 14-18-20
D-PM2515M8 25 15 M8 14-18-20
D-PM2520M8 25 20 M8 14-18-20
D-PM2522M8 25 22 M8 14-18-20
D-PM2525M8 25 25 M8 14-18-20
D-PM2530M8 25 30 M8 14-18-20
D-PM3010M6 30 10 M6 12-18
D-PM3012M6 30 12 M6 12-18
D-PM3015M6 30 15 M6 12-18
D-PM3017M6 30 17 M6 12-18
D-PM3020M6 30 20 M6 12-18
D-PM3022M6 30 22 M6 12-18
D-PM3025M6 30 25 M6 12-18
D-PM3030M6 30 30 M6 12-18
D-PM3040M6 30 40 M6 12-18
D-PM3010M8 30 10 M8 14-18-20-23-25-35
D-PM3012M8 30 12 M8 14-18-20-23-25-35
D-PM3015M8 30 15 M8 14-18-20-23-25-35
D-PM3017M8 30 17 M8 14-18-20-23-25-35
D-PM3020M8 30 20 M8 14-18-20-23-25-35
D-PM3022M8 30 22 M8 14-18-20-23-25-35
D-PM3025M8 30 25 M8 14-18-20-23-25-35
D-PM3030M8 30 30 M8 14-18-20-23-25-35
D-PM3040M8 30 40 M8 14-18-20-23-25-35
D-PM4005M8 40 5 M8 14-18-20-23-25-28-35
D-PM4010M8 40 10 M8 14-18-20-23-25-28-35
D-PM4015M8 40 15 M8 14-18-20-23-25-28-35
D-PM4020M8 40 20 M8 14-18-20-23-25-28-35
D-PM4025M8 40 25 M8 14-18-20-23-25-28-35
D-PM4028M8 40 28 M8 14-18-20-23-25-28-35
D-PM4030M8 40 30 M8 14-18-20-23-25-28-35
D-PM4035M8 40 35 M8 14-18-20-23-25-28-35
D-PM4040M8 40 40 M8 14-18-20-23-25-28-35
D-PM4045M8 40 45 M8 14-18-20-23-25-28-35
D-PM4005M10 40 5 M10 15-18.5-20-25-28-35
D-PM4010M10 40 10 M10 15-18.5-20-25-28-35
D-PM4015M10 40 15 M10 15-18.5-20-25-28-35
D-PM4020M10 40 20 M10 15-18.5-20-25-28-35
D-PM4025M10 40 25 M10 15-18.5-20-25-28-35
D-PM4028M10 40 28 M10 15-18.5-20-25-28-35
D-PM4030M10 40 30 M10 15-18.5-20-25-28-35
D-PM4035M10 40 35 M10 15-18.5-20-25-28-35
D-PM4040M10 40 40 M10 15-18.5-20-25-28-35
D-PM4045M10 40 45 M10 15-18.5-20-25-28-35
D-PM5015M10 50 15 M10 15-18.5-20-25-28-35
D-PM5020M10 50 20 M10 15-18.5-20-25-28-35
D-PM5025M10 50 25 M10 15-18.5-20-25-28-35
D-PM5030M10 50 30 M10 15-18.5-20-25-28-35
D-PM5040M10 50 40 M10 15-18.5-20-25-28-35
D-PM5045M10 50 45 M10 15-18.5-20-25-28-35
D-PM5050M10 50 50 M10 15-18.5-20-25-28-35
D-PM6030M10 60 30 M10 25-28-35
D-PM6035M10 60 35 M10 25-28-35
D-PM6040M10 60 40 M10 25-28-35
D-PM6045M10 60 45 M10 25-28-35
D-PM6050M10 60 50 M10 25-28-35
D-PM6030M12 60 30 M12 28-37
D-PM6035M12 60 35 M12 28-37
D-PM6040M12 60 40 M12 28-37
D-PM6045M12 60 45 M12 28-37
D-PM6050M12 60 50 M12 28-37
D-PM6550M12 65 50 M12 28-37
D-PM7030M12 70 30 M12 28-37
D-PM7040M12 70 40 M12 28-37
D-PM7050M12 70 50 M12 28-37
D-PM7525M12 75 25 M12 28-37
D-PM7530M12 75 30 M12 28-37
D-PM7540M12 75 40 M12 28-37
D-PM7545M12 75 45 M12 28-37
D-PM7550M12 75 50 M12 28-37
D-PM7555M12 75 55 M12 28-37
D-PM8080M12 80 80 M12 35-45
D-PM8080M16 80 80 M16 35-45
D-PM10040M16 100 40 M16 35-45-47
D-PM10050M16 100 50 M16 35-45-47
D-PM10055M16 100 55 M16 35-45-47
D-PM10060M16 100 60 M16 35-45-47
D-PM100100M16 100 100 M16 35-45-47
