Polyurethane Rod, PU Rod
You are here: Home » Products » PU Products » Polyurethane Rod, PU Rod

PRODUCT DETAIL

Share to:

Polyurethane Rod, PU Rod

Quantity:
  • 3A2002
  • Clear Yellow, Red, Black, Brown, Blue, Green etc.

Description: the polyurethane elastomeric is a new material of polymer synthetic between rubber and plastic. It has both high strength of plastic and high elasticity of rubber. Its characteristics are: 1, a wide range of hardness. It still has rubber elongation and resilience at high hardness. The polyurethane elastomeric has a hardness range of Shore A10-D80. 2. high strength. At rubber hardness, the tensile strength, tear strength and load carrying capacity are much higher than general rubber material. At high hardness, its impact strength and flexural strength are much higher than plastic material. 3, wear-resistant. Its wear resistance is very outstanding, generally in the range of 0.01-0.10cm3/1.61km, about 3-5 times than rubber material. 4, oil resistant. The polyurethane elastomeric is a highly polar polymer compound which has low affinity with non-polar mineral oil and is hardly eroded in fuel oil and mechanical oil. 5, good resistance to oxygen and ozone. 6, excellent vibration absorption performance, can do damping and buffering. In the mold manufacturing industry, it replaces rubber and springs.7, has good low temperature performance. 8, radiation resistance. Polyurethane is highly resistant to high energy radiation and has satisfactory performance at 10-10 deg radiation dose. 9, with good machining performance.


The polyurethane rod, pu rod are made by full sets mould cast with high quality polyester or polyether. It is very good performance of chemic erode resistant, impregnant resistant, ozone resistant, radiation resistant, aging resistant, hydrolyze resistant, and high tensile strength, tear resistant, high impact resistant, high bend strength and low compression set etc. The abrasion resistant is 5 multiple more than pure natural rubber, and the oil resistant is 3-5 multiple more than NBR rubber, and have high elasticity 65% with prominent compression resistant at high temperature. Wider revise hardness range of 75-95shore A, very good viscidity with metal material, it is a new macromolecule material with fast evolutive now. Apply to military, mine, oil field, chemical, printing, punch, paper making, shoe making, spin, auto industrial etc.


Specifications:

material: virgin CPU and TPU of polyether or polyester

color: clear yellow, red, black, brown, blue, green etc.

surface: smooth

tensile strength: 25-50Mpa

elasticity impact: >25%

hardness: 75-95shore A

elongation: 400%-600%

density: 1.15-1.25g/cm3

tear strength: 35-155KN/m

akron abrasion loss:<0.05cm3/1.61km

compression set (22h*70°C):<10%

working temperature: 120°C

diameter: Ø10-300mm

length: 300 or 500mm

standard size:

Ø10mm x 300/500mm

Ø15mm x 300/500mm

Ø20mm x 300/500mm

Ø25mm x 300/500mm

Ø30mm x 300/500mm

Ø35mm x 300/500mm

Ø40mm x 300/500mm

Ø45mm x 300/500mm

Ø50mm x 300/500mm

Ø55mm x 300/500mm

Ø60mm x 300/500mm

Ø65mm x 300/500mm

Ø70mm x 300/500mm

Ø75mm x 300/500mm

Ø80mm x 300/500mm

Ø85mm x 300/500mm

Ø90mm x 300/500mm

Ø95mm x 300/500mm

Ø100mm x 300/500mm

Ø110mm x 300/500mm

Ø120mm x 300/500mm

Ø130mm x 300/500mm

Ø140mm x 300/500mm

Ø150mm x 300/500mm

Ø160mm x 300/500mm

Ø170mm x 300/500mm

Ø180mm x 300/500mm

Ø190mm x 300/500mm

Ø200mm x 300/500mm

Ø220mm x 300/500mm

Ø250mm x 300/500mm

Ø280mm x 300/500mm

Ø300mm x 300/500mm

packing in crates

OEM & customized size are agreed

***when you enquiry, pls confirm the material, color, hardness, size and quantity***

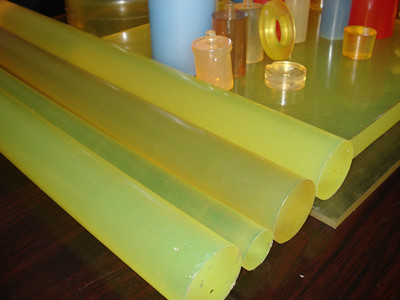

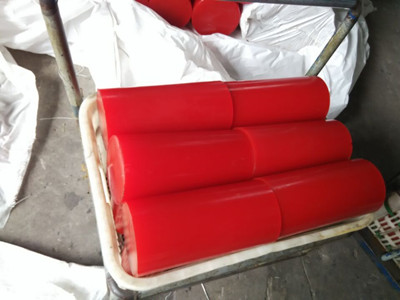

pu rod-001_副本       pu rod-138_副本

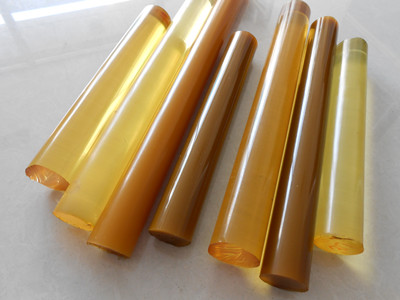

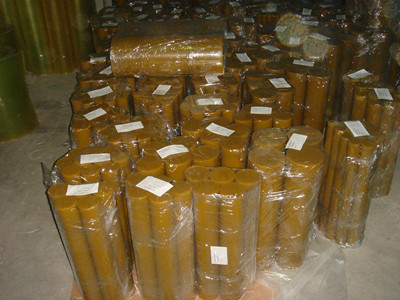

pu rod-104_副本       pu rod-024_副本

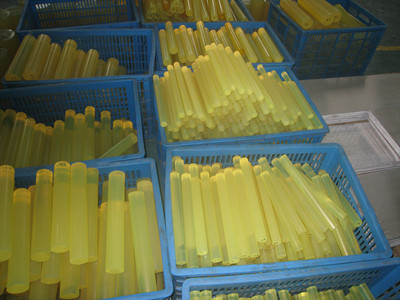

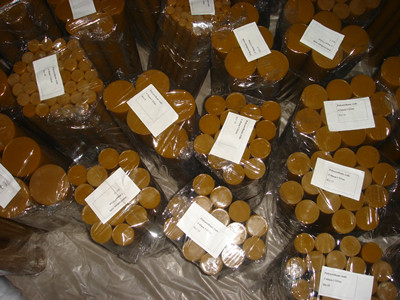

pu rod-026_副本       pu rod-045_副本

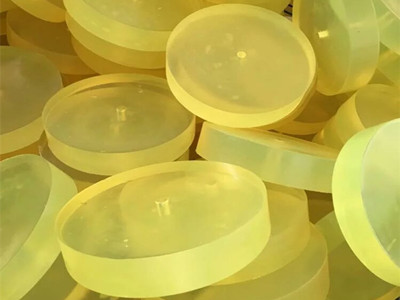

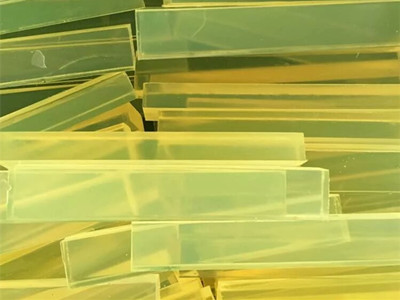

PU Sheet-183_副本       PU Sheet-187_副本
