Polyurethane Coupling, Rubber Coupling

Polyurethane Coupling, Rubber Coupling
Virgin Polyurethane & Rubber
Hardness 70-98shore A
Full Sets Mould Size
Availability:
Quantity:
  • 3A Rubber

  • 3A2006

  • Yellow, Red, Black, Purple, Green, Beige, Blue etc.

Description: the polyurethane elastomeric is a new material of polymer synthetic between rubber and plastic. It has both high strength of plastic and high elasticity of rubber. Its characteristics are: 1, a wide range of hardness. It still has rubber elongation and resilience at high hardness. The polyurethane elastomeric has a hardness range of Shore A10-D80. 2. high strength. At rubber hardness, the tensile strength, tear strength and load carrying capacity are much higher than general rubber material. At high hardness, its impact strength and flexural strength are much higher than plastic material. 3, wear-resistant. Its wear resistance is very outstanding, generally in the range of 0.01-0.10cm3/1.61km, about 3-5 times than rubber material. 4, oil resistant. The polyurethane elastomeric is a highly polar polymer compound which has low affinity with non-polar mineral oil and is hardly eroded in fuel oil and mechanical oil. 5, good resistance to oxygen and ozone. 6, excellent vibration absorption performance, can do damping and buffering. In the mold manufacturing industry, it replaces rubber and springs.7, has good low temperature performance. 8, radiation resistance. Polyurethane is highly resistant to high energy radiation and has satisfactory performance at 10-10 deg radiation dose. 9, with good machining performance.


The polyurethane coupling, rubber coupling are made by injection with high quality TPU material or cast mould by rubber material. It is designing and special for all kinds of metal shaft coupling with very good performance of high tensile strength, high wear resistant, high elastic resilience, water resistant, oil resistant and excellent fatigue resilience, high impact resistant etc. We have full sets moulds and supply full range of GR, GS, MT, ML, MH, Hb, HRC, L, T, NM and Gear J series couplings with high quality and excellent experience. Apply to all kinds of industrial metal shaft coupling.


Specifications:

material: TPU, CSM/SBR, NBR, nylon etc.

color: yellow, red, purple, green, black, beige etc.

surface: smooth

tensile strength: 8-55Mpa

hardness: 70-98Shore A

elongation: 400%-650%

density: 1.25g/cm3

elasticity impact: >25%

tear strength: 35-155KN/m

akron abrasion loss:<0.05cm3/1.61km

compression set (22h*70°C):<10%

working temperature: 120°C

standard size for polyurethane coupling:

GR14, GR19, GR24, GR28, GR38, GR42, GR48, GR55, GR65, GR75, GR90, GR100, GR110, GR125, GR140, GR160, GR180

GS5, GS7, GS9, GS12, GS14, GS19, GS24, GS28, GS38, GS42, GS48, GS550, GS65, GS75

MT1, MT2, MT3, MT4, MT5, MT6, MT7, MT8, MT9, MT10, MT11, MT12, MT13

ML1, ML2, ML3, ML4, ML5, ML6, ML7, ML8, ML9, ML10, ML11, ML12, ML13

MH45, MH55, MH65, MH80, MH90, MH115, MH130, MH145, MH175, MH200

HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280

L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225, L276

FALK-R 10R, 20R, 30R, 40R, 50R, 60R, 70R, 80R

SBT T40, T45, T50, T55, T60, T65, T70, T75, T80, T85, T90, T95, T100, T105, T108, T110, T115, T120, T125, T130, T135, T140, T145, T150, T154, T170, T185, T190, T210

Joong Ang CR0050, 0070, 0010, 0020, 2035, 2035A, 3545, 4560, 6070, 7080

MS0511, MS0714, MS1119, MS1424, MS1928, MS1938, MS2845, MS3860, MS4275, MS6510

D14, D14L, D20, D25, D30, D30L, D35, D40, D45, D49, D55, D65

5H, 6H, 7H, 8H, 9H, 10H, 11H


standard size for rubber coupling:

Hb80, Hb95, Hb110, Hb125, Hb140, Hb160, Hb180, Hb200, Hb240, Hb280, Hb315

HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280

L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225

NM50, NM67, NM82, NM97, NM112, NM128, NM148, NM168, NM194, NM214, NM240, NM265

NOR-MEX168-10, NOR-MEX194-10, NOR-MEX214-10, NOR-MEX240-10, NOR-MEX265-10

FCL1#, FCL2#, FCL3#, FCL4#, FCL5#, FCL6#, FCL7#, FCL8#

FCL90, FCL100, FCL112, FCL125, FCL140, FCL160, FCL180, FCL200, FCL224, FCL250, FCL280, FCL315, FCL335, FCL400, FCL450, FCL560, FCL630

Gear 3J, 4J, 5J, 6J, 7J, 8J, 9J, 10J, 11J, 12J, 13J, 14J

Hytre 4H, 5H, 6H, 7H, 8H, 9H, 11H

Tyre F40, F50, F60, F70, F80, F90, F100, F110, F120, F140, F160

SBT T75, T80, T85, T90, T95, T100, T105, T108, T110, T115, T120, T125, T130, T135, T140, T145, T150, T154, T170, T210

FCLpin #1, #2, #3, #4, #5, #6, #8

GR42, GR48, GR55, GR65, GR75

DL1, DL2, DL3, DL4, DL5, DL6, DL7, DL8, DL9, DL10, DL11


standard size for nylon coupling:

NL1, NL2, NL3, NL4, NL5, NL6, NL7, NL8, NL9, NL10

M28, M32, M38, M42, M48, M58, M65

packing in bags, cartons, pallets or crates

OEM & customized size are agreed

special supply all kinds of steel coupling for FCL, NM, MH, HRC, Love Joy, Joongang, Centafelx, XL-GR, Tyre

When you enquiry, pls confirm the type, size number and quantity

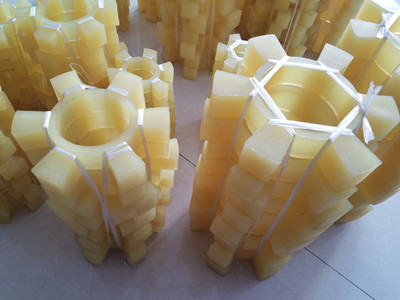

pu coupling for l-021_副本     pu coupling for sbt-006_副本


flender pu coupling-002_副本     hytrel coupling element_副本


nylon gear coupling-018_副本     mh steel coupling-4_副本

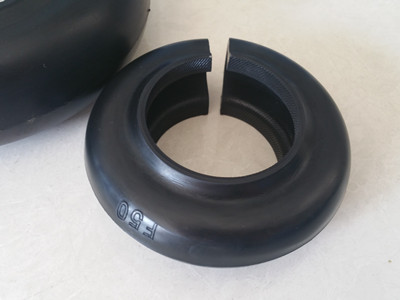

rubber coupling for nm-003_副本     rubber coupling for tyre-030_副本
