3A Rubber
3A6002
White, Black, Blue, Yellow, Red, Green

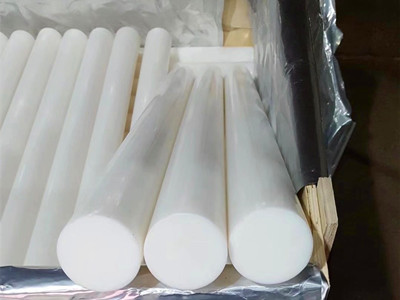

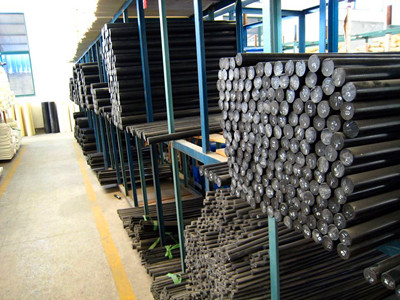

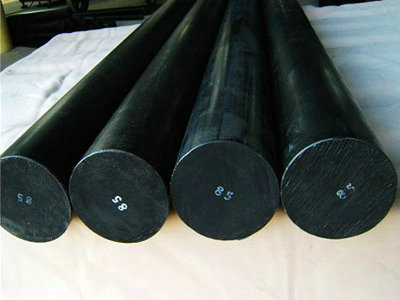

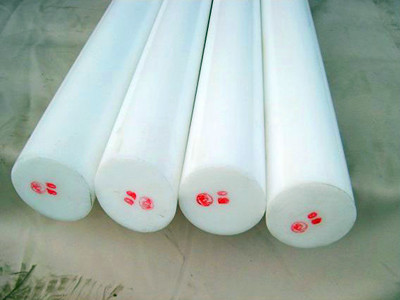

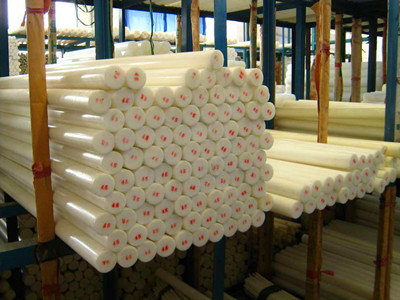

Description: the POM rod, derlin rod are made with high quality POM material, high mechanical strength, rigidity, fatigue resistance, resistance degeneration good shape. Excellent wear resistance, dimensional stability, creep resistance, good abrasion resistance, self-lubricated and frictionand dielectric properties, water resistance and solvent resistance. It's an ideal replacement material for non-ferrous metal and alloy steel of copper, cast zinc, steel, aluminum and other metal materials. POM together with UHMWPE, PA, F4 are known as the four wear-resistant plastic materials. High thermal stability, good chemical stability and excellent electrical insulation. It is the first material choice for manufacturing gear. Apply to produce gears, springs, bearings, connecting rod, impeller blades, toys, windows, water tanks and washing basins of the industry in machinery, automobile, electronic and electrical.
Specifications:
material: virgin POM-C
color: white, black, blue, yellow, red, green etc.
surface: smooth/smooth
tensile strength: 60-70Mpa
density: 1.40+/-0.03g/cm3
elongation: 15%
impact strength: 80-100KJ/m2
moulding shrinkage: 2.5%-2.8%
resistivity: 1x1014ohm.cm
cold temperature: -30°C
heat distortion temperature: +165°C
melt point: +175°C
standard size:
Ø12mm x 1m
Ø15mm x 1m
Ø20mm x 1m
Ø22mm x 1m
Ø25mm x 1m
Ø30mm x 1m
Ø32mm x 1m
Ø35mm x 1m
Ø40mm x 1m
Ø45mm x 1m
Ø50mm x 1m
Ø55mm x 1m
Ø60mm x 1m
Ø65mm x 1m
Ø70mm x 1m
Ø75mm x 1m
Ø80mm x 1m
Ø85mm x 1m
Ø90mm x 1m
Ø95mm x 1m
Ø100mm x 1m
Ø105mm x 1m
Ø110mm x 1m
Ø120mm x 1m
Ø125mm x 1m
Ø130mm x 1m
Ø140mm x 1m
Ø150mm x 1m
Ø160mm x 1m
Ø170mm x 1m
Ø180mm x 1m
Ø200mm x 1m
Ø220mm x 1m
Ø250mm x 1m
OEM & customized size are agreed
packing in bags and pallets or crates
When you enquiry, pls confirm the material, color, size and quantity
Description: the POM rod, derlin rod are made with high quality POM material, high mechanical strength, rigidity, fatigue resistance, resistance degeneration good shape. Excellent wear resistance, dimensional stability, creep resistance, good abrasion resistance, self-lubricated and frictionand dielectric properties, water resistance and solvent resistance. It's an ideal replacement material for non-ferrous metal and alloy steel of copper, cast zinc, steel, aluminum and other metal materials. POM together with UHMWPE, PA, F4 are known as the four wear-resistant plastic materials. High thermal stability, good chemical stability and excellent electrical insulation. It is the first material choice for manufacturing gear. Apply to produce gears, springs, bearings, connecting rod, impeller blades, toys, windows, water tanks and washing basins of the industry in machinery, automobile, electronic and electrical.
Specifications:
material: virgin POM-C
color: white, black, blue, yellow, red, green etc.
surface: smooth/smooth
tensile strength: 60-70Mpa
density: 1.40+/-0.03g/cm3
elongation: 15%
impact strength: 80-100KJ/m2
moulding shrinkage: 2.5%-2.8%
resistivity: 1x1014ohm.cm
cold temperature: -30°C
heat distortion temperature: +165°C
melt point: +175°C
standard size:
Ø12mm x 1m
Ø15mm x 1m
Ø20mm x 1m
Ø22mm x 1m
Ø25mm x 1m
Ø30mm x 1m
Ø32mm x 1m
Ø35mm x 1m
Ø40mm x 1m
Ø45mm x 1m
Ø50mm x 1m
Ø55mm x 1m
Ø60mm x 1m
Ø65mm x 1m
Ø70mm x 1m
Ø75mm x 1m
Ø80mm x 1m
Ø85mm x 1m
Ø90mm x 1m
Ø95mm x 1m
Ø100mm x 1m
Ø105mm x 1m
Ø110mm x 1m
Ø120mm x 1m
Ø125mm x 1m
Ø130mm x 1m
Ø140mm x 1m
Ø150mm x 1m
Ø160mm x 1m
Ø170mm x 1m
Ø180mm x 1m
Ø200mm x 1m
Ø220mm x 1m
Ø250mm x 1m
OEM & customized size are agreed
packing in bags and pallets or crates
When you enquiry, pls confirm the material, color, size and quantity
