3A4014
Natural Galvanized
Description: the DBL rubber mounting is one of shock absorber with professional technology and inimitable formulation and full sets of injection moulds without mould line and nothing mould cost.. The top is screw made with high quality zinc coated metal sheet, the bottom is support metal sheet with 2 stockets, the middle is high quality rubber of NBR, NR with full adhesive between the rubber and metal parts. It is excellent properties of anti-vibration on axial and lateral for generators, engines, motors system, small rubber compress but higher load, and it help to get more safety with special design of safety lock. Apply to anti-vibration and shock absorption for all kinds generators, engines, motors, compressor, pump, refrigerator and other metal system.
Specifications:
material: white znic-plated steel + rubber
rubber: NR, NBR(default is NR 60shore A)
quality: industrial grade
color: natural galvanized color
top: metal bolt with screw thread
middle: high tensile rubber
bottom: metal seat with holes
surface: smooth
tensile strength: 8-15Mpa
hardness: 40, 60, 70+/-5shore A
elongation: 350%
density: 1.4g/cm3
tear strength: 2.7KN/m
working temperature: -40°C - +120°C
working frequency: 500-3000HZ
size: standard without mould cost
OEM & customized size are agreed
packing in bags, cartons and crates
For more data & information, pls mail to sales@3Arubber.com
When you enquiry, pls confirm the item number and quantity

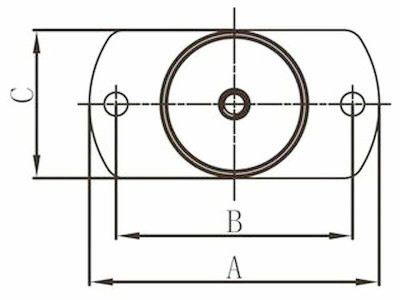

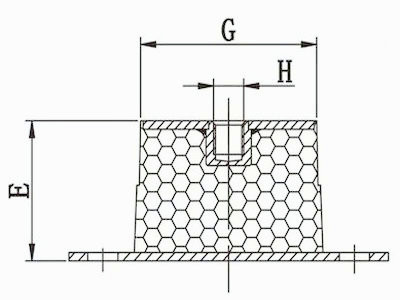

| Item | Hardness | Size(mm) | Load | Max Load | Compression | |||||
| SH A | G | E | H | B | A | C | kgs/mm | kgs | mm | |
| DBL7050K | 40 | 70 | 50 | M12 | 120 | 147 | 76 | 33 | 100 | 3 |
| DBL7050M | 60 | 70 | 50 | M12 | 120 | 147 | 76 | 60 | 185 | 3 |
| DBL7050H | 70 | 70 | 50 | M12 | 120 | 147 | 76 | 83 | 250 | 3 |
| DBL8050K | 40 | 80 | 50 | M12 | 112 | 140 | 90 | 45 | 180 | 4 |
| DBL8050M | 60 | 80 | 50 | M12 | 112 | 140 | 90 | 82 | 330 | 4 |
| DBL8050H | 70 | 80 | 50 | M12 | 112 | 140 | 90 | 112 | 450 | 4 |
| DBL10580K | 40 | 105 | 80 | M20 | 144 | 174 | 111 | 50 | 230 | 4 |
| DBL10580M | 60 | 105 | 80 | M20 | 144 | 174 | 111 | 90 | 420 | 4 |
| DBL10580H | 70 | 105 | 80 | M20 | 144 | 174 | 111 | 145 | 560 | 4 |
| DBL12564K | 40 | 125 | 64 | M20 | 180 | 220 | 131 | 75 | 300 | 4 |
| DBL12564M | 60 | 125 | 64 | M20 | 180 | 220 | 131 | 137 | 550 | 4 |
| DBL12564H | 70 | 125 | 64 | M20 | 180 | 220 | 131 | 185 | 740 | 4 |
| DBL15280K | 40 | 152 | 80 | M20 | 197 | 232 | 158 | 95 | 380 | 4 |
| DBL15280M | 60 | 152 | 80 | M20 | 197 | 232 | 158 | 175 | 700 | 4 |
| DBL15280H | 70 | 152 | 80 | M20 | 197 | 232 | 158 | 235 | 940 | 4 |
