| Quantity: | |
|---|---|
3A4007
Black

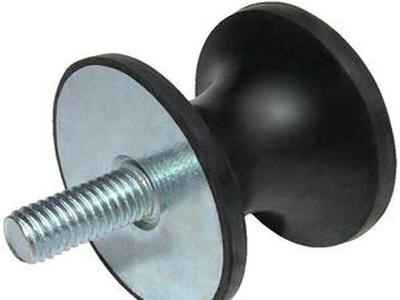

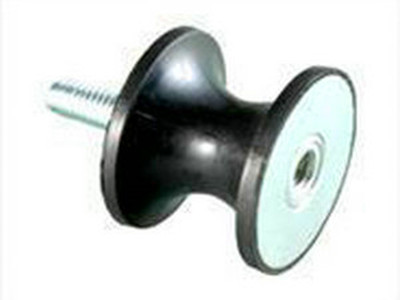

Description: the TB-MF rubber mounting is a rubber shock absorber screw made with professional technology, inimitable formulation and full sets of injection moulds without mould line and nothing mould cost. The one sides is male bolts and another side is female screw made with high quality zinc coated metal and standard screwthread, the middle is " V " surface with high quality rubber of NR, NBR, EPDM, SBR etc.(default rubber is NR 60shore A). It is standard shock absorber typically used for fixed or flexible fastener devices, suitable for a variety of applications, especially elastic suspension and vibration isolation of machines and a variety of machinery, centrifuge industrial fans, small electronics, pumps, dryers, washing machines, electric motors, measuring equipments, inverter and compressor speed at 1200rpm/min or more mechanical equipment selection, installation is simple and specification, diameter 8-100mm various size are available.
Specifications:
elastic elements: rubber of NR, NBR, EPDM, SBR etc.(default is NR 60shore A)
metal parts: white zinc-plated steel
quality: industrial grade
color: black
top: screw thread
middle: saddle rubber
bottom: screw bolt
surface: smooth
tensile strength: 8-15Mpa
hardness: 40, 50, 60+/-5shore A
elongation: 350%
density: 1.4g/cm3
tear strength: 2.7KN/m
application temperature: -40°C ~ +80°C
size: standard without mould cost
OEM & customized size are agreed
packing in bags, cartons and crates
For more data & information, pls mail to sales@3Arubber.com
When you enquiry, pls confirm the quantity, item number or your drawings

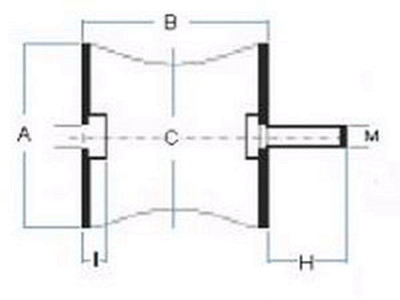

| Code | A | C | B | M | H/I |
| mm | mm | mm | mm | mm | |
| TB-MF201015M6 | 20 | 10 | 15 | M6 | 8-16/6-8 |
| TB-MF251020M6 | 25 | 10 | 20 | M6 | 10-20/6-8 |
| TB-MF251818M8 | 25 | 18 | 18 | M8 | 18-20/6-8 |
| TB-MF251820M8 | 25 | 18 | 20 | M8 | 18-20/6-8 |
| TB-MF401530M8 | 40 | 15 | 30 | M8 | 14-25/6-10 |
| TB-MF402030M8 | 40 | 20 | 30 | M8 | 14-25/6-10 |
| TB-MF402730M8 | 40 | 27 | 30 | M8 | 14-25/6-10 |
| TB-MF403030M8 | 40 | 30 | 30 | M8 | 14-25/6-10 |
