C-FF Rubber Mounting, Shock Absorber

Availability:
Quantity:
  • 3A4003

  • Black

Description: the C-FF rubber mounting, DD rubber mounting (C-FF = DD type) is a rubber shock absorber screw made with professional technology, inimitable formulation and full sets of injection moulds without mould line and nothing mould cost. The two sides are female screw made with high quality zinc coated metal and standard screwthread, the middle is high quality rubber of NR, NBR, EPDM, SBR etc.(default rubber is NR 60shore A). It is standard shock absorber typically used for fixed or flexible fastener devices, suitable for a variety of applications, especially elastic suspension and vibration isolation of machines and a variety of machinery, centrifuge industrial fans, small electronics, pumps, dryers, washing machines, electric motors, measuring equipments, inverter and compressor speed at 1200rpm/min or more mechanical equipment selection, installation is simple and specification, diameter 10-100mm various size are available.


Specifications:

type: C-FF = DD type

elastic elements: rubber of NR, NBR, EPDM, SBR etc.(default is NR 60shore A)

metal parts: white zinc-plated steel or SS304, SS316 customed under moq

quality: industrial grade

color: black

top: screw thread

middle: rubber

bottom: screw thread

surface: smooth

tensile strength: 8-15Mpa

hardness: 40, 50, 60+/-5shore A

elongation: 350%

density: 1.4g/cm3

tear strength: 2.7KN/m

application temperature: -40°C ~ +80°C

size: standard without mould cost

OEM & customized size are agreed

packing in bags, cartons and crates

For more data & information, pls mail to sales@3Arubber.com

When you enquiry, pls confirm the item number and quantity

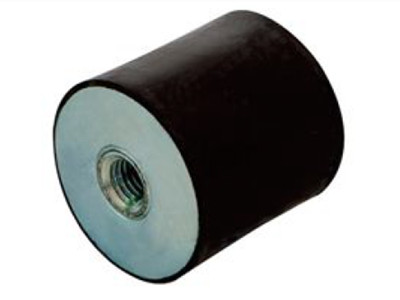

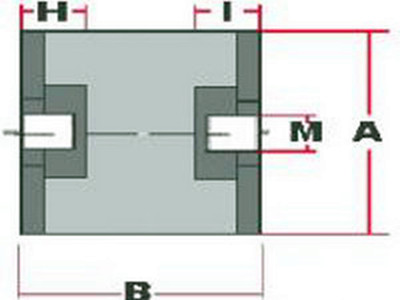

微信图片_20190228100459_副本_副本     rubber mounting c-ff-2_副本

Code (C-FF = DD Type) A B M H/I
mm mm mm mm
C-FF1010M4 10 10 M4 4
C-FF1515M4 15 15 M4 4
C-FF1520M4 15 20 M4 4
C-FF1525M4 15 24 M4 4
C-FF1515M5 15 15 M5 3
C-FF1520M5 15 20 M5 3
C-FF1525M5 15 25 M5 3
C-FF1615M4 16 15 M4 3
C-FF1620M4 16 20 M4 3
C-FF1615M5 16 15 M5 3
C-FF1620M5 16 20 M5 3
C-FF2020M6 20 20 M6 4-6
C-FF2025M6 20 25 M6 4-6
C-FF2030M6 20 30 M6 4-6
C-FF2520M6 25 20 M6 4-6
C-FF2522M6 25 22 M6 6
C-FF2525M6 25 25 M6 6
C-FF2530M6 25 30 M6 6-8
C-FF2520M8 25 20 M8 6-8
C-FF2522M8 25 22 M8 6-8
C-FF2525M8 25 25 M8 6-8
C-FF2530M8 25 30 M8 6-8
C-FF3020M6 30 20 M6 6
C-FF3022M6 30 22 M6 6
C-FF3025M6 30 25 M6 6
C-FF3030M6 30 30 M6 6
C-FF3040M6 30 40 M6 6
C-FF3022M8 30 22 M8 6
C-FF3025M8 30 25 M8 6-8.5-10
C-FF3030M8 30 30 M8 6-8.5-10
C-FF3040M8 30 40 M8 6-8.5-10
C-FF4025M8 40 25 M8 6-10
C-FF4028M8 40 28 M8 6-10
C-FF4030M8 40 30 M8 6-10
C-FF4035M8 40 35 M8 6-10
C-FF4040M8 40 40 M8 6-10
C-FF4045M8 40 45 M8 6-10
C-FF4025M10 40 25 M10 6
C-FF4028M10 40 28 M10 6
C-FF4030M10 40 30 M10 6
C-FF4035M10 40 35 M10 6
C-FF4040M10 40 40 M10 6-10
C-FF4045M10 40 45 M10 6-10
C-FF5030M10 50 30 M10 6-10
C-FF5040M10 50 40 M10 6-10
C-FF5045M10 50 45 M10 6-10
C-FF5050M10 50 50 M10 6-10
C-FF6035M10 60 35 M10 6-10
C-FF6040M10 60 40 M10 6-10
C-FF6045M10 60 45 M10 6-10
C-FF6050M10 60 50 M10 6-10
C-FF6035M12 60 35 M12 9
C-FF6040M12 60 40 M12 9
C-FF6045M12 60 45 M12 9
C-FF6050M12 60 50 M12 9
C-FF6550M12 65 50 M12 9
C-FF7040M12 70 40 M12 9
C-FF7050M12 70 50 M12 9
C-FF7525M12 75 25 M12 9-13
C-FF7530M12 75 30 M12 9-13
C-FF7540M12 75 40 M12 9-13
C-FF7545M12 75 45 M12 9-13
C-FF7550M12 75 50 M12 9-13
C-FF8040M14 80 40 M14 12
C-FF8050M14 80 50 M14 12
C-FF8060M14 80 60 M14 12
C-FF8070M14 80 70 M14 12
C-FF8080M14 80 80 M14 12
C-FF10040M16 100 40 M16 14-16
C-FF10045M16 100 45 M16 14-16
C-FF10050M16 100 50 M16 14-16
C-FF10055M16 100 55 M16 14-16
C-FF10060M16 100 60 M16 14-16
C-FF10070M16 100 70 M16 14-16
C-FF10075M16 100 75 M16 14-16
C-FF10080M16 100 80 M16 14-16
C-FF100100M16 100 100 M16 14-16
