Polyurethane Oil Seal, Hydraulic Oil Seal
You are here: Home » Products » PU Products » Polyurethane Oil Seal, Hydraulic Oil Seal

PRODUCT DETAIL

Share to:

Polyurethane Oil Seal, Hydraulic Oil Seal

Quantity:
  • 3A2005
  • Blue, Green, Black, Yellow, Beige, Brown, Red etc.

Description: the polyurethane elastomeric is a new material of polymer synthetic between rubber and plastic. It has both high strength of plastic and high elasticity of rubber. Its characteristics are: 1, a wide range of hardness. It still has rubber elongation and resilience at high hardness. The polyurethane elastomeric has a hardness range of Shore A10-D80. 2. high strength. At rubber hardness, the tensile strength, tear strength and load carrying capacity are much higher than general rubber material. At high hardness, its impact strength and flexural strength are much higher than plastic material. 3, wear-resistant. Its wear resistance is very outstanding, generally in the range of 0.01-0.10cm3/1.61km, about 3-5 times than rubber material. 4, oil resistant. The polyurethane elastomeric is a highly polar polymer compound which has low affinity with non-polar mineral oil and is hardly eroded in fuel oil and mechanical oil. 5, good resistance to oxygen and ozone. 6, excellent vibration absorption performance, can do damping and buffering. In the mold manufacturing industry, it replaces rubber and springs.7, has good low temperature performance. 8, radiation resistance. Polyurethane is highly resistant to high energy radiation and has satisfactory performance at 10-10 deg radiation dose. 9, with good machining performance.


The polyurethane oil seal, hydraulic oil seal are made by injection molding with high quality TPU. It is very good performance of chemic erode resistant, impregnant resistant, ozone resistant, radiation resistant, aging resistant, hydrolyze resistant, and high tensile strength, tear resistant, high impact resistant, high bend strength and low compression set etc. The abrasion resistant is 5 multiple more than pure natural rubber, and the oil resistant is 3-5 multiple more than NBR rubber, and have high elasticity 65% with prominent compression resistant at high temperature. Wider revise hardness range on 85-92shore A, very good viscidity with metal material, it is a new macromolecule material with fast evolutive now. Apply to all kinds of hydraulic seal, ring and gasket on military, mine, oil field, chemical, printing, punch, paper making, spin, auto industrial for oil, air and water with better tensile strength, lower compressive deformation, resistant hot and cold temperature,


Specifications:

material: virgin TPU

type: UN, UH, UR, GB, GK, KY, NKS, KDAS etc.

color: blue, green, black, yellow, beige, red, brown, beige etc.

surface: smooth or matte

tensile strength: 50Mpa

hardness: 80-90Shore A

elongation: 500%

density: 1.25g/cm3

elasticity impact: >25%

tear strength: 155KN/m

akron abrasion loss:<0.05cm3/1.61km

compression set (22h*70°C):<10%

working temperature: 120°C

packing in cartons

OEM & customized size are agreed

***when you enquiry, pls confirm type, size and quantity***

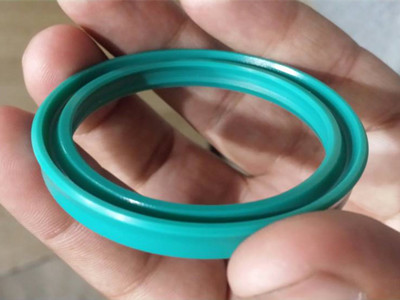

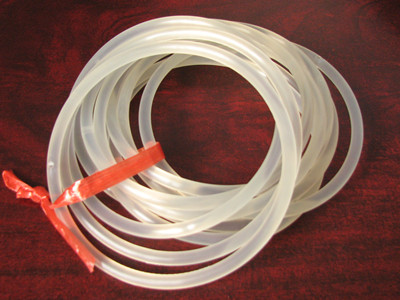

pu o ring-008_副本      pu ur seal green-001_副本

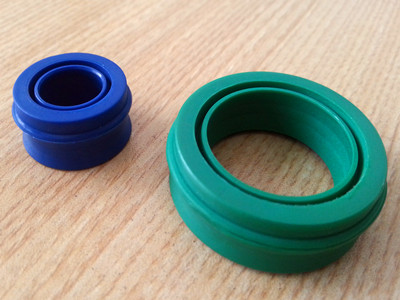

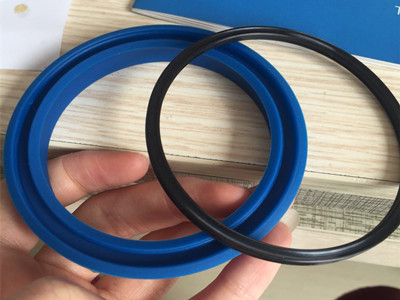

pu mpi seal-003_副本      pu ea seal-002_副本

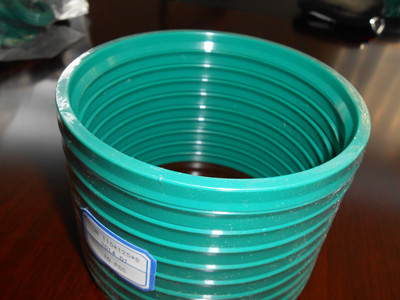

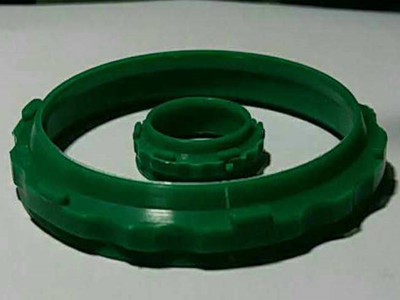

pp oil seal-008_副本      pu un seal-017_副本

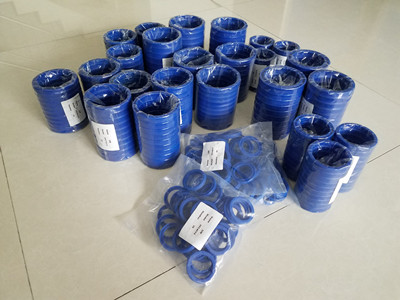

pu un seal-024_副本      pu un seal-062_副本
