| Quantity: | |
|---|---|
3A5002
Black, White, Red, Grey etc.

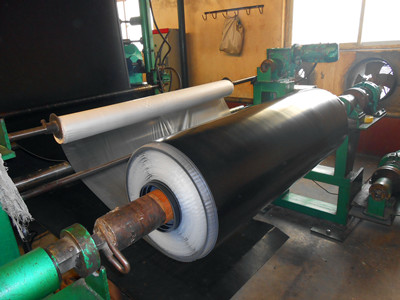

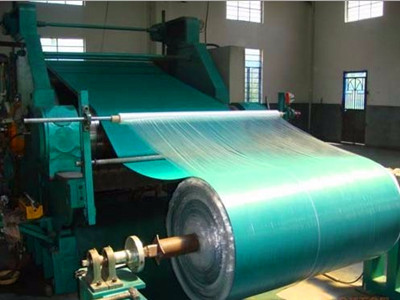

Description: the SBR rubber sheet, SBR rubber roll are made by drum vulcanizer(ROTOCURE) or plate vulcanizer with high quality Styrene Butadiene Rubber material(SBR, one of synthetic rubber), with middling hardness and high tensile strength and high abrasion resistance without smell. 0.5-10mm thickness made by drum vulcanizer(ROTOCURE) with shiny surface, 12-100mm thickness made by plate vulcanizer for get higher thickness. Working under the higher pressure status at the temperature of -35°C - +100°C in air and water. Apply to punch all kinds of seals and gaskets and others which is high abrasion resistance, anti-impact and high cushion performance.
| Product Name | SBR Rubber Sheet, SBR Rubber Roll | |||||
| Specific Gravity | Tensile Strength | Elongation | Hardness | Thickness | Width | Length |
| ( g/cm³ ) | ( Mpa ) | ( % ) | ( Shore A ) | ( mm ) | ( m ) | ( m ) |
| 1.7 | 2 | 170 | 65±5 | 1.0-100 | 0.1-2.0 | 1-10.0 |
| 1.6 | 2.5 | 200 | 65±5 | 1.0-100 | 0.1-2.0 | 1-10.0 |
| 1.5 | 3 | 200 | 65±5 | 1.0-100 | 0.1-2.0 | 1-10.0 |
| 1.45 | 4 | 200 | 40-80±5 | 1.0-100 | 0.1-2.0 | 1-10.0 |
| 1.4 | 5 | 250 | 40-80±5 | 1.0-100 | 0.1-2.0 | 1-10.0 |
| 1.35 | 8 | 300 | 40-80±5 | 0.5-100 | 0.1-3.6 | 1-10.0 |
| 1.25 | 10 | 350 | 40-80±5 | 0.5-100 | 0.1-3.6 | 1-10.0 |
| 1.15 | 12 | 380 | 40-80±5 | 0.5-100 | 0.1-3.6 | 1-10.0 |
| Color | black, white, red, green, blue etc | |||||

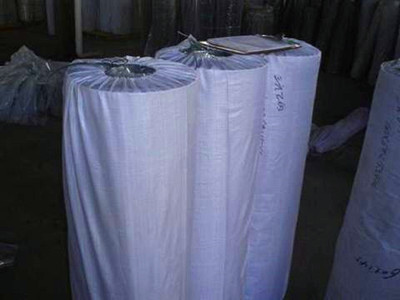

| Packing | In rolls with plastic bags inside, outer white woven bags and finally wooden pallets | |||||
| Insertion | cotton, EP, NY mesh fabric insertion available | |||||
| Surface | smooth and fabric surface available | |||||
| Delivery time | 1 x 20'GP container 10-20days after received deposit | |||||
| Loading port | Tianjin, Shanghai, China | |||||
| Payment terms | T/T 30% deposit, 70% T/T against B/L copy | |||||
Specifications:
material: virgin SBR Rubber or reclaimed SBR
quality: industrial grade
color: black, white, red, grey etc.
surface: smooth/smooth, smooth/impression fabric, double impression fabric
Insertion: reinforce and insert 1-3PLY cotton, polyester, EP fabric or wire mesh SS201, SS304, SS316
tensile strength: 2-12Mpa
hardness: 40, 50, 60, 70, 80+/-5shore A
elongation: 170%-380%
density: 1.15-1.70g/cm3
working temperature: -35°C - +100°C
thickness: 0.5-100.0mm
width: 0.1-3.6m
length: 1.0-10m
OEM & customized size are agreed
packing in rolls and pallets
For more data & information, pls send email to sales@3Arubber.com
When you enquiry, pls confirm the tensile strength, hardness, color, size and quantity
Description: the SBR rubber sheet, SBR rubber roll are made by drum vulcanizer(ROTOCURE) or plate vulcanizer with high quality Styrene Butadiene Rubber material(SBR, one of synthetic rubber), with middling hardness and high tensile strength and high abrasion resistance without smell. 0.5-10mm thickness made by drum vulcanizer(ROTOCURE) with shiny surface, 12-100mm thickness made by plate vulcanizer for get higher thickness. Working under the higher pressure status at the temperature of -35°C - +100°C in air and water. Apply to punch all kinds of seals and gaskets and others which is high abrasion resistance, anti-impact and high cushion performance.
| Product Name | SBR Rubber Sheet, SBR Rubber Roll | |||||
| Specific Gravity | Tensile Strength | Elongation | Hardness | Thickness | Width | Length |
| ( g/cm³ ) | ( Mpa ) | ( % ) | ( Shore A ) | ( mm ) | ( m ) | ( m ) |
| 1.7 | 2 | 170 | 65±5 | 1.0-100 | 0.1-2.0 | 1-10.0 |
| 1.6 | 2.5 | 200 | 65±5 | 1.0-100 | 0.1-2.0 | 1-10.0 |
| 1.5 | 3 | 200 | 65±5 | 1.0-100 | 0.1-2.0 | 1-10.0 |
| 1.45 | 4 | 200 | 40-80±5 | 1.0-100 | 0.1-2.0 | 1-10.0 |
| 1.4 | 5 | 250 | 40-80±5 | 1.0-100 | 0.1-2.0 | 1-10.0 |
| 1.35 | 8 | 300 | 40-80±5 | 0.5-100 | 0.1-3.6 | 1-10.0 |
| 1.25 | 10 | 350 | 40-80±5 | 0.5-100 | 0.1-3.6 | 1-10.0 |
| 1.15 | 12 | 380 | 40-80±5 | 0.5-100 | 0.1-3.6 | 1-10.0 |
| Color | black, white, red, green, blue etc | |||||
| Packing | In rolls with plastic bags inside, outer white woven bags and finally wooden pallets | |||||
| Insertion | cotton, EP, NY mesh fabric insertion available | |||||
| Surface | smooth and fabric surface available | |||||
| Delivery time | 1 x 20'GP container 10-20days after received deposit | |||||
| Loading port | Tianjin, Shanghai, China | |||||
| Payment terms | T/T 30% deposit, 70% T/T against B/L copy | |||||
Specifications:
material: virgin SBR Rubber or reclaimed SBR
quality: industrial grade
color: black, white, red, grey etc.
surface: smooth/smooth, smooth/impression fabric, double impression fabric
Insertion: reinforce and insert 1-3PLY cotton, polyester, EP fabric or wire mesh SS201, SS304, SS316
tensile strength: 2-12Mpa
hardness: 40, 50, 60, 70, 80+/-5shore A
elongation: 170%-380%
density: 1.15-1.70g/cm3
working temperature: -35°C - +100°C
thickness: 0.5-100.0mm
width: 0.1-3.6m
length: 1.0-10m
OEM & customized size are agreed
packing in rolls and pallets
For more data & information, pls send email to sales@3Arubber.com
When you enquiry, pls confirm the tensile strength, hardness, color, size and quantity
