Phenolic Rod, Bakelite Rod
You are here: Home » Products » Plastic Products » Phenolic Rod, Bakelite Rod

PRODUCT DETAIL

Share to:

Phenolic Rod, Bakelite Rod

Quantity:
  • 3A6012
  • Brown, Beige, Yellow, Red

Description: the phenolic rod, bakelite rod are created from cotton cloth that has been impregnated with phenolic resin under pressure and heat. Have low water absorption rate, high mechanical strength, good electric performance wether under the moist or dry environment and high temperature resistant, high dielectric performance and mechanical processing performance. Apply to PCB fixture, ICT fixture, pads of drilling machine, gear, motor, generator, transformer, fixture inverter, switch, electric insulation part, generator, transformer, fixture, inverter, motor and electric insulation component.


Specification:

materuial: phenolic resin+cotton fabric or paper

color: brown, beige, yellow, red

surface: smooth

tensile strength: 78Mpa

flexural strength: 90-110Mpa

compression strength: 138Mpa

breakdown voltage: 10KV

density: 1.25-1.40g/cm3

heat-resistant: B class 130

size: od8-200mm x 1m

***when you enquiry, pls confirm the color, size and quantity***

Properties

Grade

insulation bakelite rod

Properties

Units

3723

3724

3725

3726

Density


Dia(mm)

g/cm3

1.25-1.40

1.25-1.40

1.25-1.40

1.25-1.40

Water absorption rate (D-24/23)

6

%

1.7

1

1.2

1

13

1.3

(Φ13mm)

(Φ13mm)

(Φ13mm)

25

1




25~51

1.2




Flexural strength


MPa

90

95

110

95

Tensile strengh


MPa

78

\

\

\

Compression strength (Axial)


MPa

138

138

138

138

Insulation resistance parallel to laminations


\

\

\

A: Under normal condition


W

1.0×108




D-24/23: Immersion in water


W

\

\

\

\

Breakdown voltage parallel to laminations (in transformer oil)


KV

10

10

10

10


(20±5°C)

(20±5°C)

(20±5°C)

(20±5°C)

Flammability



-

-

-

-

-

Color



-

Natural

Natural

Natural

Natural

Reference standard



-

Enterprise Standard

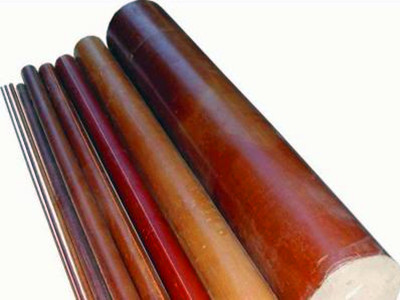

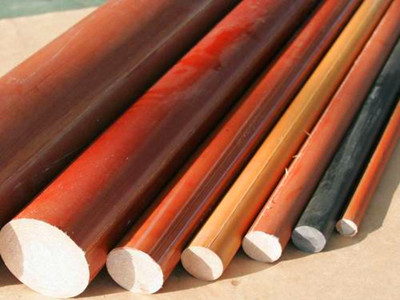

bakelite-rods-500x500_副本       20180417224440_72896_lit_副本

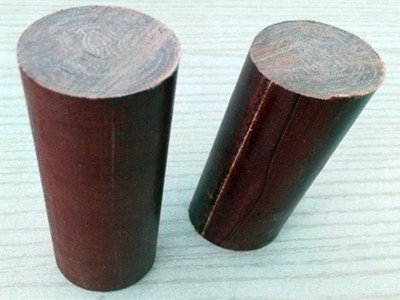

phenolic rod-003_副本       htb1zqvykvxxxxxtxfxxq6xxfxxxl_副本

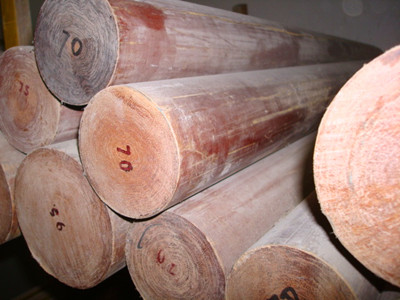

c6d3bdb1-8126-4667-a46a-1a7283b0c680_副本       phenolic rod-008_副本

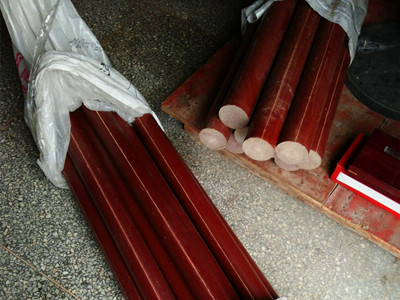

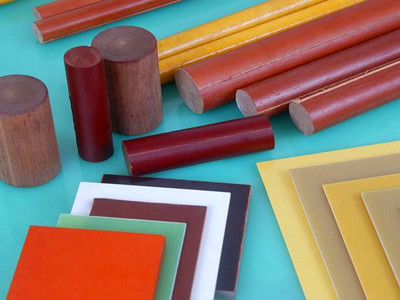

phenolic rod-025_副本       phenolic rod-023_副本
