POM Rod, Derlin Rod

Quantity:
  • 3A6002
  • White, Black

Description: the POM rod, derlin rod are made with high quality POM material, high mechanical strength, rigidity, fatigue resistance, resistance degeneration good shape. Excellent wear resistance, dimensional stability, creep resistance, good abrasion resistance, self-lubricated and frictionand dielectric properties, water resistance and solvent resistance. It's an ideal replacement material for non-ferrous metal and alloy steel of copper, cast zinc, steel, aluminum and other metal materials. POM together with UHMWPE, PA, F4 are known as the four wear-resistant plastic materials. High thermal stability, good chemical stability and excellent electrical insulation. It is the first material choice for manufacturing gear. Apply to produce gears, springs, bearings, connecting rod, impeller blades, toys, windows, water tanks and washing basins of the industry in machinery, automobile, electronic and electrical.


Specifications:

material: virgin POM-C

color: white, black

surface: smooth/smooth

tensile strength: 60-70Mpa

density: 1.40+/-0.03g/cm3

elongation: 15%

impact strength: 80-100KJ/m2

moulding shrinkage: 2.5%-2.8%

resistivity: 1x1014ohm.cm

cold temperature: -30°C

heat distortion temperature: +165°C

melt point: +175°C

standard size:

Ø12mm x 1m

Ø15mm x 1m

Ø20mm x 1m

Ø22mm x 1m

Ø25mm x 1m

Ø30mm x 1m

Ø32mm x 1m

Ø35mm x 1m

Ø40mm x 1m

Ø45mm x 1m

Ø50mm x 1m

Ø55mm x 1m

Ø60mm x 1m

Ø65mm x 1m

Ø70mm x 1m

Ø75mm x 1m

Ø80mm x 1m

Ø85mm x 1m

Ø90mm x 1m

Ø95mm x 1m

Ø100mm x 1m

Ø105mm x 1m

Ø110mm x 1m

Ø120mm x 1m

Ø125mm x 1m

Ø130mm x 1m

Ø140mm x 1m

Ø150mm x 1m

Ø160mm x 1m

Ø170mm x 1m

Ø180mm x 1m

Ø200mm x 1m

Ø220mm x 1m

Ø250mm x 1m

***when you enquiry, pls confirm the color, size and quantity***

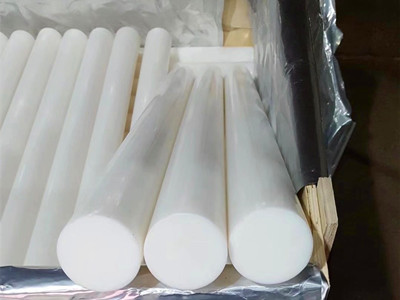

1551876954993_副本       pom rod-001_副本

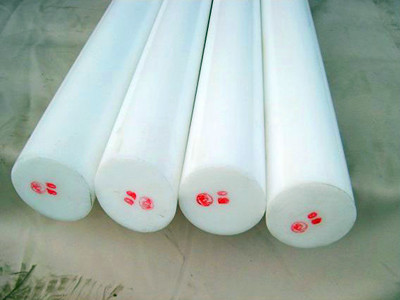

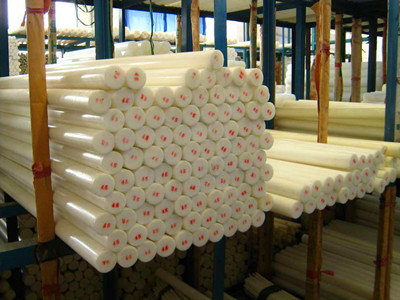

pom rod-004_副本       pom rod-021_副本

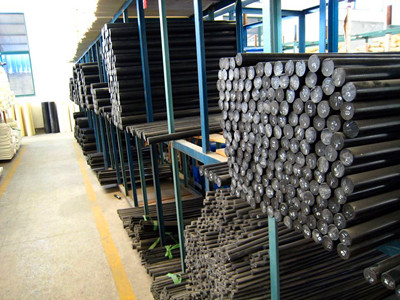

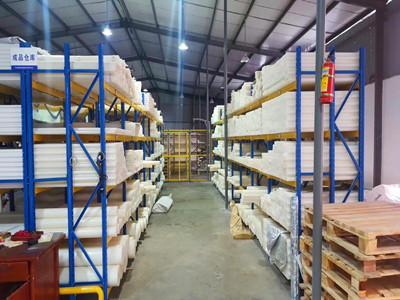

pom rod-018_副本       1551876762933_副本

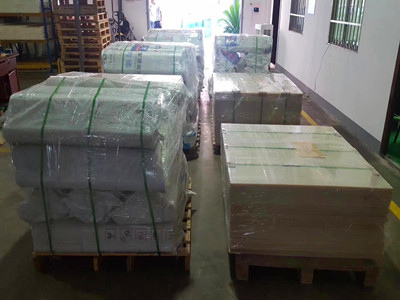

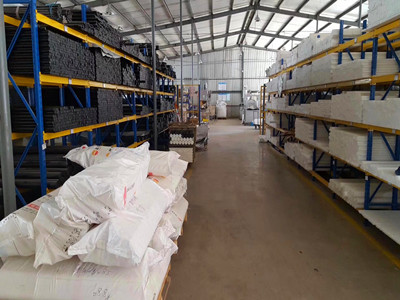

1551876571472_副本       1551876392867_副本
