| Quantity: | |
|---|---|
3A6004
White, Black, Blue etc.
Description: the nylon rod, PA6 rod are extruded and moulded with 100% virgin nylon PA6, PA66. It is recognized as the most widely used and known engineering plastic in the current market. PA6 has the best performance, very tough, even at low temperatures, and high hardness in the surface, toughness, mechanical lower shock, and abrasion resistance. Combined with these characteristics and good insulation, and chemical properties, it has become common-level materials. Its widely used in a variety of mechanical structures and spare parts. Compared to PA6, PA66 own the higher hardness, rigidity, a good resistance to wear and heat deflection temperature. Apply to Bearings, gears, wheels, roller shaft, water pump impeller, fan blades, oil delivery pipe, oil storage pipe, rope, fishing nets and transformer coil.
Specifications:
material: virgin nylon PA6, PA66, MC901
color: white, blue, black etc.
surface: smooth/smooth
tensile strength: 49-90Mpa
bending strength: 155Mpa
compression strength: 111.5Mpa
shear strength: 74-81Mpa
impact(no notch): 520-624Kgf.cm/cm2
hardness: R110-120(M91-M88)
elongation:10%-30%
density: 1.16g/cm3
surface resistivity: 1x1013-1015ohm
volume resistivity: 1x1013-1015ohm.CM
vicat heat: 160-180kg.cm/cm2
heat distortion temperature: +165°C
standard size:
Ø6mm x 1m
Ø7mm x 1m
Ø8mm x 1m
Ø10mm x 1m
Ø12mm x 1m
Ø15mm x 1m
Ø16mm x 1m
Ø18mm x 1m
Ø20mm x 1m
Ø22mm x 1m
Ø25mm x 1m
Ø28mm x 1m
Ø30mm x 1m
Ø32mm x 1m
Ø35mm x 1m
Ø40mm x 1m
Ø45mm x 1m
Ø50mm x 1m
Ø55mm x 1m
Ø60mm x 1m
Ø65mm x 1m
Ø70mm x 1m
Ø75mm x 1m
Ø80mm x 1m
Ø85mm x 1m
Ø90mm x 1m
Ø95mm x 1m
Ø100mm x 1m
Ø105mm x 1m
Ø110mm x 1m
Ø120mm x 1m
Ø125mm x 1m
Ø130mm x 1m
Ø140mm x 1m
Ø145mm x 1m
Ø150mm x 1m
Ø160mm x 1m
Ø170mm x 1m
Ø180mm x 1m
Ø190mm x 1m
Ø200mm x 1m
Ø210mm x 1m
Ø220mm x 1m
Ø230mm x 1m
Ø250mm x 1m
Ø260mm x 1m
Ø270mm x 1m
Ø280mm x 1m
Ø290mm x 1m
Ø300mm x 1m
Ø350mm x 1m
Ø400mm x 1m
OEM & customized size are agreed

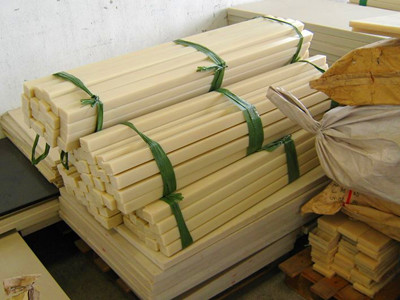

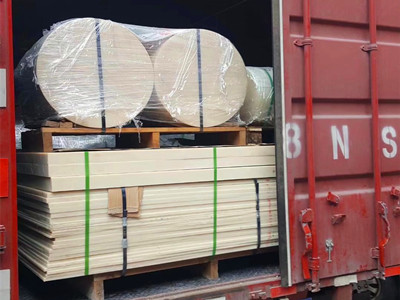

packing in bags, pallets or crates
For more data & information, pls mail to sales@3Arubber.com
When you enquiry, pls confirm the material, color, size and quantity
Description: the nylon rod, PA6 rod are extruded and moulded with 100% virgin nylon PA6, PA66. It is recognized as the most widely used and known engineering plastic in the current market. PA6 has the best performance, very tough, even at low temperatures, and high hardness in the surface, toughness, mechanical lower shock, and abrasion resistance. Combined with these characteristics and good insulation, and chemical properties, it has become common-level materials. Its widely used in a variety of mechanical structures and spare parts. Compared to PA6, PA66 own the higher hardness, rigidity, a good resistance to wear and heat deflection temperature. Apply to Bearings, gears, wheels, roller shaft, water pump impeller, fan blades, oil delivery pipe, oil storage pipe, rope, fishing nets and transformer coil.
Specifications:
material: virgin nylon PA6, PA66, MC901
color: white, blue, black etc.
surface: smooth/smooth
tensile strength: 49-90Mpa
bending strength: 155Mpa
compression strength: 111.5Mpa
shear strength: 74-81Mpa
impact(no notch): 520-624Kgf.cm/cm2
hardness: R110-120(M91-M88)
elongation:10%-30%
density: 1.16g/cm3
surface resistivity: 1x1013-1015ohm
volume resistivity: 1x1013-1015ohm.CM
vicat heat: 160-180kg.cm/cm2
heat distortion temperature: +165°C
standard size:
Ø6mm x 1m
Ø7mm x 1m
Ø8mm x 1m
Ø10mm x 1m
Ø12mm x 1m
Ø15mm x 1m
Ø16mm x 1m
Ø18mm x 1m
Ø20mm x 1m
Ø22mm x 1m
Ø25mm x 1m
Ø28mm x 1m
Ø30mm x 1m
Ø32mm x 1m
Ø35mm x 1m
Ø40mm x 1m
Ø45mm x 1m
Ø50mm x 1m
Ø55mm x 1m
Ø60mm x 1m
Ø65mm x 1m
Ø70mm x 1m
Ø75mm x 1m
Ø80mm x 1m
Ø85mm x 1m
Ø90mm x 1m
Ø95mm x 1m
Ø100mm x 1m
Ø105mm x 1m
Ø110mm x 1m
Ø120mm x 1m
Ø125mm x 1m
Ø130mm x 1m
Ø140mm x 1m
Ø145mm x 1m
Ø150mm x 1m
Ø160mm x 1m
Ø170mm x 1m
Ø180mm x 1m
Ø190mm x 1m
Ø200mm x 1m
Ø210mm x 1m
Ø220mm x 1m
Ø230mm x 1m
Ø250mm x 1m
Ø260mm x 1m
Ø270mm x 1m
Ø280mm x 1m
Ø290mm x 1m
Ø300mm x 1m
Ø350mm x 1m
Ø400mm x 1m
OEM & customized size are agreed
packing in bags, pallets or crates
For more data & information, pls mail to sales@3Arubber.com
When you enquiry, pls confirm the material, color, size and quantity
